30KW PV System Off-grid 400v Three Phase

30KW three phase solar energy system, off-grid type with battery backup. Suitable for smart home/ small commercial buliding.

  • Item NO.:

    30KW SYSTEM
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, Ningbo, Shenzhen, etc.
  • Lead Time:

    25 Days
  • Certificate

    All
  • Output Type:

    Single/ Three Phase
  • Product Detail

Off-grid Solar Energy System, 30kw, single/ three phase, 220v/380v


Are solar system


Home battery backup system

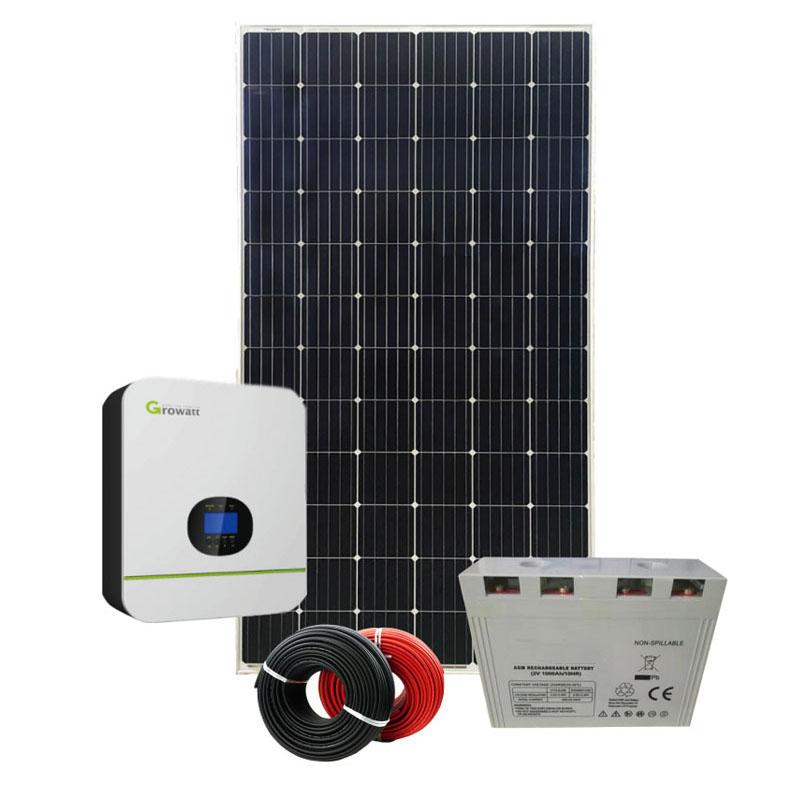

30KW Off Grid Solar System

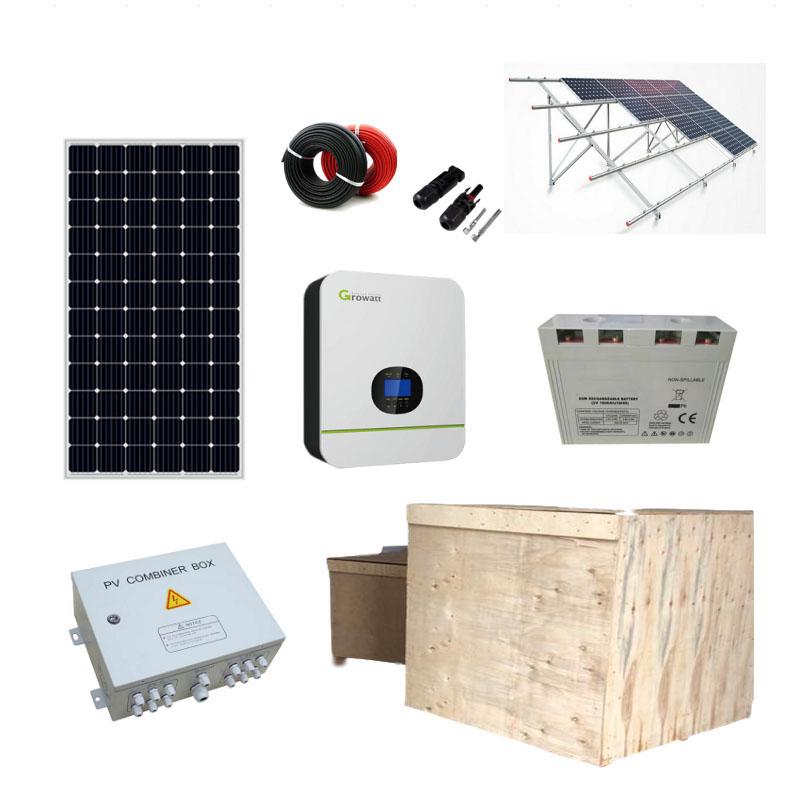

No Part name Description QTY Unit
1 Solar module Mono 380w 54 pcs

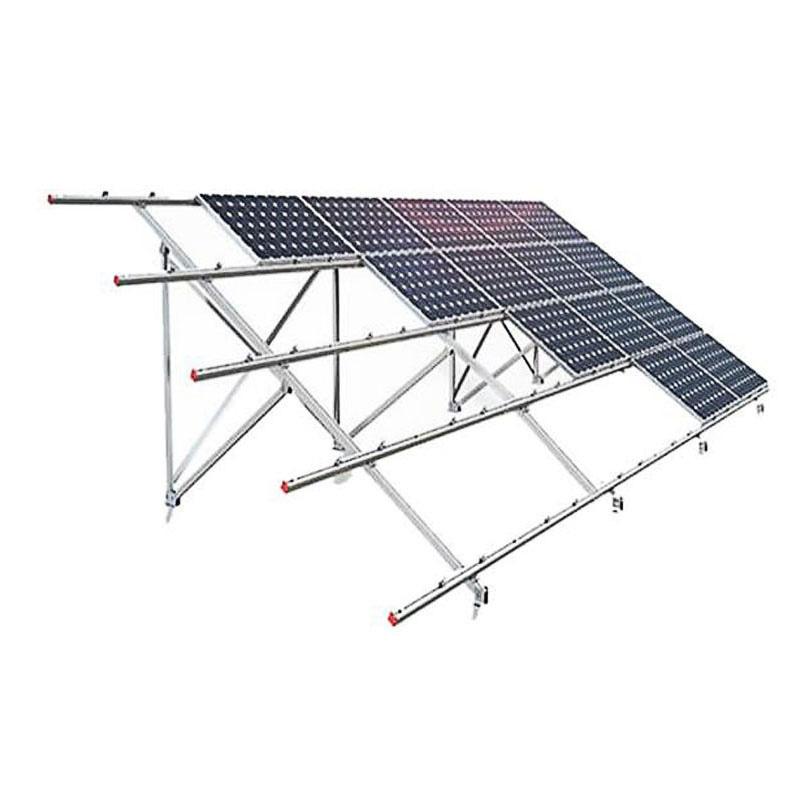

2 Mounting System Customized Roof or Ground Bracket 1 set
3 Inverter 5kW inverter off grid,WiFi, parallel model, Growatt 6 pcs
4 Gel Battery 12V 250AH 24 pcs
5 DC Switch 2P32Ah 6 pcs
6 DC Switch 2P125Ah DC550V 6 pcs
7 MC4 MC4 Connector 24 pairs
8 DC Cable 1X4mm² 400 meters
9 BVR Cable BVR-450/750V-16 100 meters
Welcome to contact us for more details.


Power in three phase system


Send A Message

Please leave us a message here, if you are interested in solar energy related products and want more details. We will reply you back within 24hours.
Related Products
Solar Power System
10KW Off Grid Solar Power System

On Grid Solar System 5kw 10kw 30kw DIY Solar Install Kit 2kw On-grid Solar System with Hoymiles Microinverter

3kw off grid solar system
Off-grid Solar System 3KW

3KW single phase solar energy system, off-grid type. Suitable for smart home.

5kw off grid system
Off-grid System With Battery 5KW

5KW single phase solar energy system, off-grid type with battery backup. Suitable for smart home.

Solar 10kw system
Off-grid Power System 10KW

10KW single phase solar energy system, off-grid type with battery backup. Suitable for smart home.

15kw solar system price
15KW Off-grid Battery Backup System

15KW three phase solar energy system, off-grid type with battery backup. Suitable for smart home/ small commercial buliding.

Battery backup system
20KW Off-grid Solar System Three Phase

20KW three phase solar energy system, off-grid type with battery backup. Suitable for smart home/ small commercial buliding.

Backup battery system
Off-grid Solar System with Battery 25KW

25KW three phase solar energy system, off-grid type with battery backup. Suitable for smart home/ small commercial buliding.

Lead Acid Battery
Solar Battery Gel Lead Acid Battery

Solar Battery Gel Lead Acid Battery Lead Acid Battery 12v150ah Maintenance Free Gel Battery Solar PV System Use Lead Acid 12V150AH :  *Maintenanch free *Convenient for installation *Safety and no leakage *Excellent recharge and discharge performance *Adapt to high or low temperature *Good deep discharge performance *Longer cycle life Product Description :  Rated Voltage 12V Number of cells 6 Cells Designed Life 5-8 Years Rated Capacity at 25℃(77℉) 10hr rate(0.1C,10.8V) 100Ah 3hr rate(0.25C,10.8V) 76.8Ah 1hr rate(0.55C,10.5V) 55.2Ah Capacity affected by Temperature(10 hour rate) 40℃(104℉) 103% 25℃(77℉) 100% 0℃(32℉) 85% -15℃(5℉) 65% Charge Method:constant-voltage charging at 25℃(77℉) Cyclic use 14.4-14.9V Maximum charging current 25A Temperature Compensation -30mV/℃ Float Use 13.6-13.8V Temperature Compensation -20mV/℃ Self-Discharge 25℃(77℉) Capacity After 3 month storage 91% After 6 month storage 82% After 12 month storage 64% Environment Temperature Requirements Discharge Temperature -15-50℃ Charge Temperature 0-40℃ Storage Temperature -15-40℃ Inner Resistance&Max. Discharge Current A fully charged battery at 25℃(77℉) 4.5mΩ Max. Discharge Current 1500A(5s) Short Circuit Current 5000A Dimension and weight Length 330mm Width 173mm Height 217mm Total Height 222mm Reference Weight 30kg Battery Construction :  Construction Positive plate Negative plate Container Cover Safety valve Terminal Separator Electrolyte Raw material Lead dioxide Lead ABS ABS Rubber Copper AGM glass Sulfuric acid
