Solar Battery Gel Lead Acid Battery

  • Item NO.:

    Lead Acid Battery
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Xiamen
  • Lead Time:

    15 Days
  • Certificate

    CE
  • Size:

    12V
  • Warranty:

    3years
  • Power range:

    100Ah, 150Ah, 200Ah, 250Ah
  • Product Detail

Solar Battery Gel Lead Acid Battery

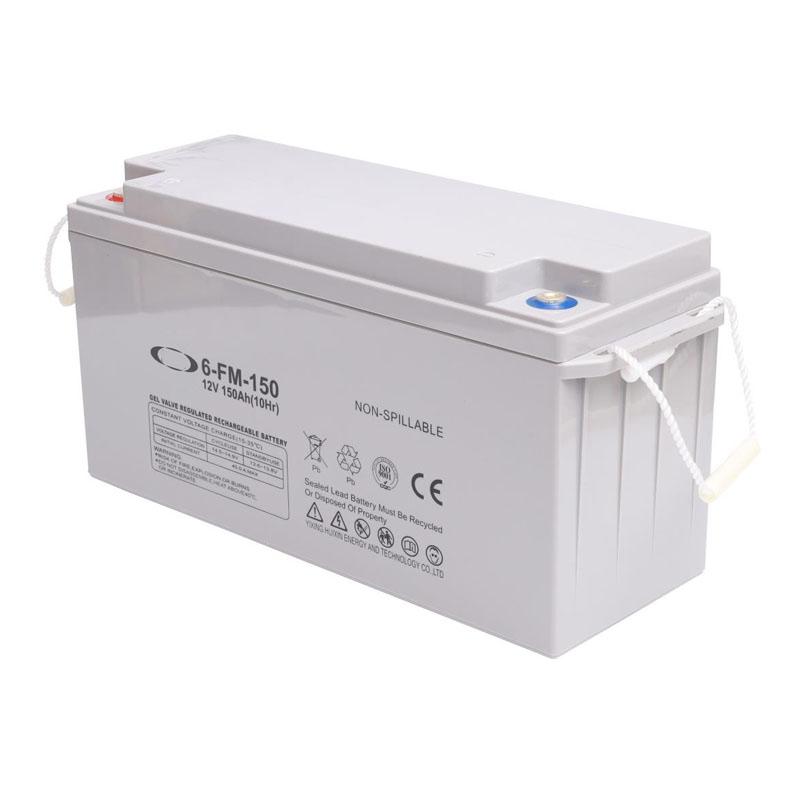

Lead Acid Battery 12v150ah Maintenance Free Gel Battery Solar PV System Use


Lead Acid 12V150AH :


*Maintenanch free

*Convenient for installation
*Safety and no leakage
*Excellent recharge and discharge performance
*Adapt to high or low temperature
*Good deep discharge performance
*Longer cycle life



Product Description :


Rated Voltage
12V
Number of cells
6 Cells
Designed Life
5-8 Years

Rated Capacity at 25℃(77℉)
10hr rate(0.1C,10.8V)
100Ah
3hr rate(0.25C,10.8V)
76.8Ah
1hr rate(0.55C,10.5V)
55.2Ah


Capacity affected by Temperature(10 hour rate)
40℃(104℉)
103%
25℃(77℉)
100%
0℃(32℉)
85%
-15℃(5℉)
65%



Charge Method:constant-voltage charging at 25℃(77℉)
Cyclic use
14.4-14.9V
Maximum charging current
25A
Temperature Compensation
-30mV/℃
Float Use
13.6-13.8V
Temperature Compensation
-20mV/℃

Self-Discharge 25℃(77℉)
Capacity
After 3 month storage
91%
After 6 month storage
82%
After 12 month storage
64%

Environment Temperature Requirements
Discharge Temperature
-15-50℃
Charge Temperature
0-40℃
Storage Temperature
-15-40℃

Inner Resistance&Max. Discharge Current
A fully charged battery at 25℃(77℉)
4.5mΩ
Max. Discharge Current
1500A(5s)
Short Circuit Current
5000A



Dimension and weight
Length
330mm
Width
173mm
Height
217mm
Total Height
222mm
Reference Weight
30kg

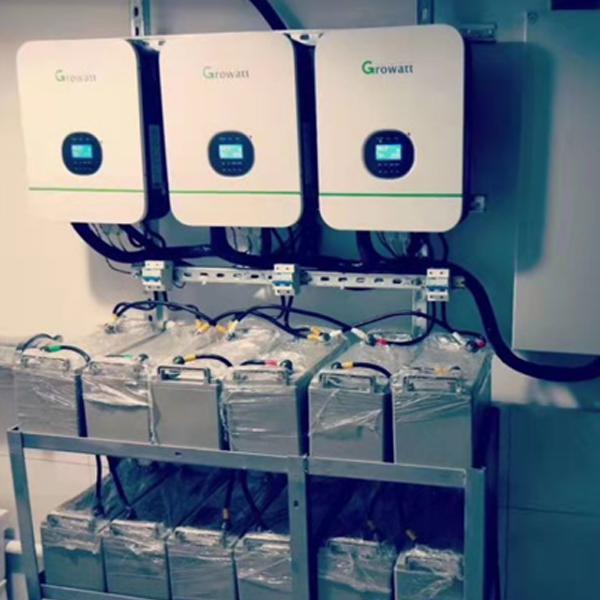

Solar power batteries



Battery Construction :


Construction
Positive plate Negative plate Container Cover Safety valve Terminal Separator Electrolyte
Raw material Lead dioxide Lead ABS ABS Rubber Copper AGM glass Sulfuric acid
