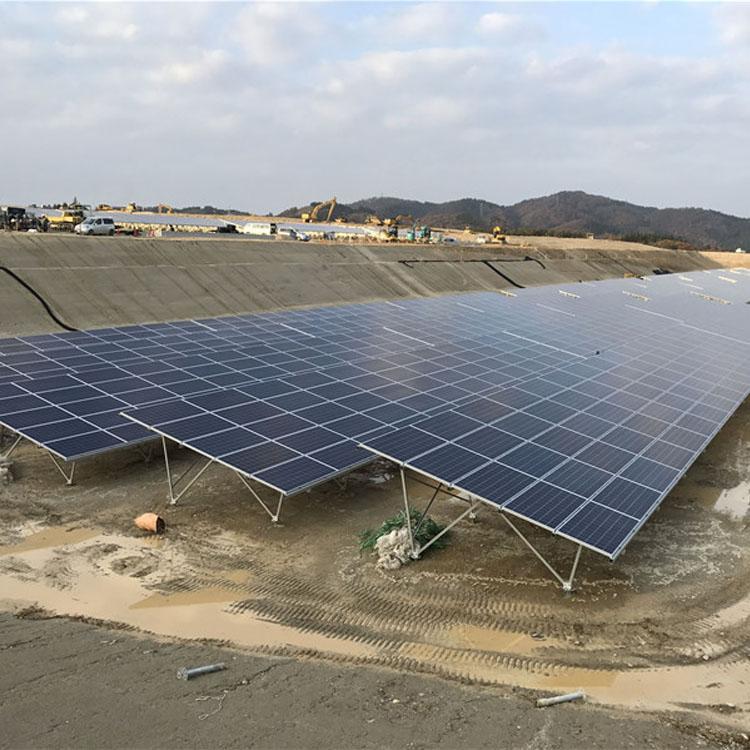

Ground Mount Solar Racking Aluminum Support Structure

The solar mounting system provided by is suitable for large-scale commercial and multifunctional installations.
Advantages: easy installation, flexibility of construction, stability and accuracy, extraordinary environmental performance, Suprtb quality.

  • Item NO.:

    Solar Energy Structu
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, Ningbo, Shenzhen, etc.
  • Lead Time:

    25 Days
  • Size:

    Free Design
  • Product Detail

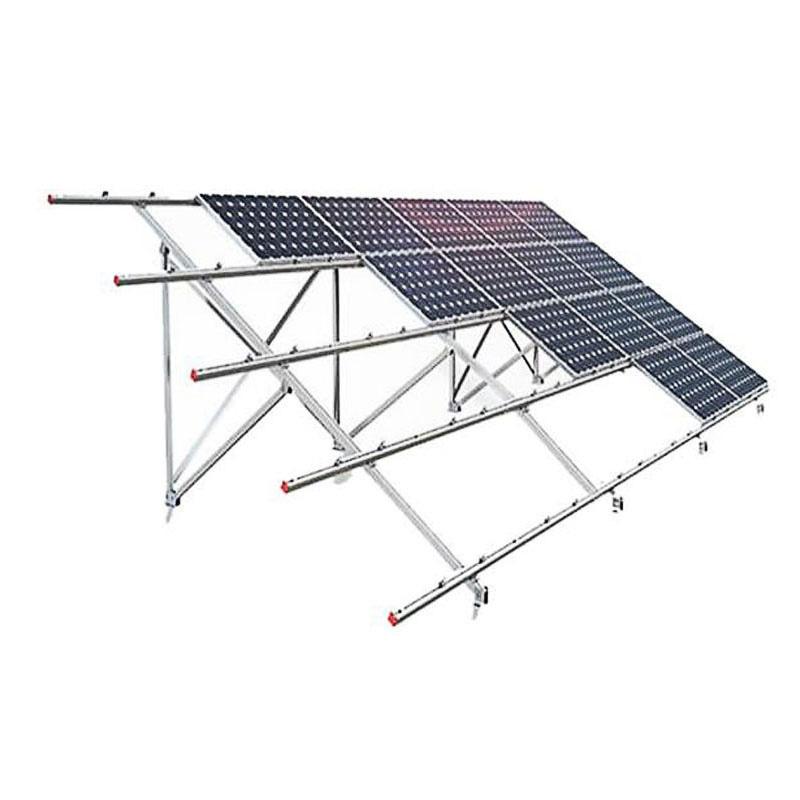

Aluminum Solar Mounting Ground PV Module Support Racking / Structure

different type solar mounting system is suitable for the installation of the large-scale for business and multipurpose.

Which is:

* Easy Insatallation.

* Flexibility, Stability and Accuracy of Construction.

* Extraordinarily Environment-friendly Performance.

* Suprtb Quality.



Product Details :


Model Number : Solar Mounting Structure

Wind Load : ≤42m/s

Snow Load : 500mm

Warranty : 20 Years

MOQ : 1000W

Installation Site : Ground-Roof-Farm

Application : Commercial

Material : Aluminum Alloy

Shipping Time : 5-20 Days

Material : Aluminum Alloy

Payment Terms : TT, ALIPAY, WU, LC, Credit Card etc.

Design standards : Free Design

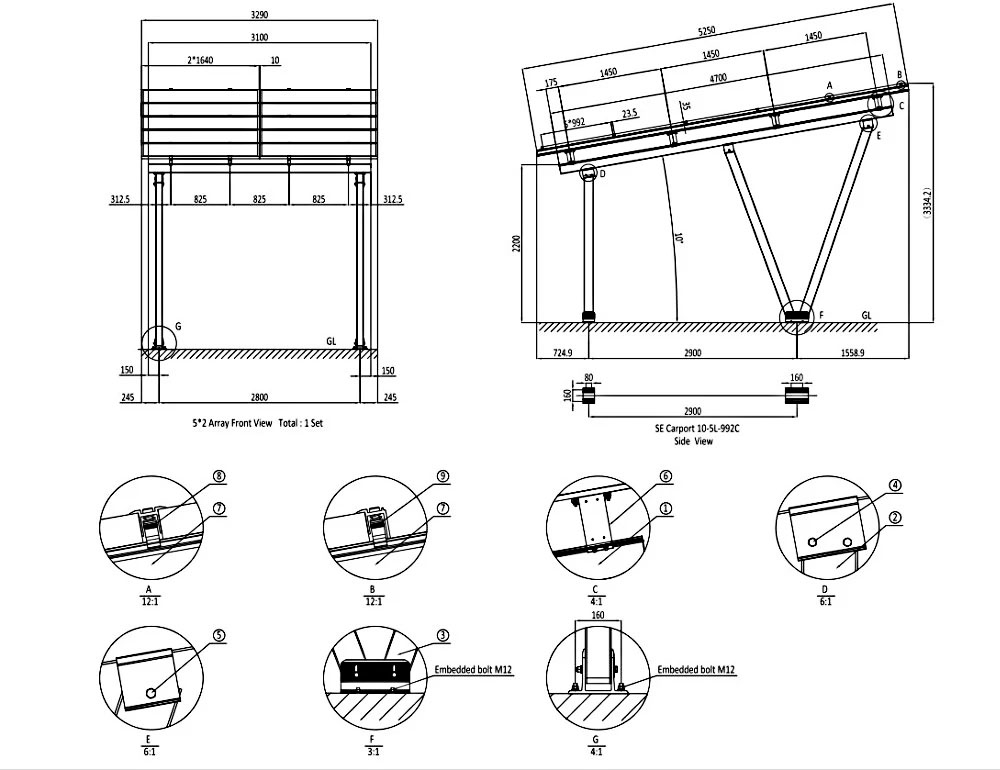

Free Design :


Solar aluminum structure




Product Specification :


Product Specification(N Type)
Snow Loading
1.4KN/m²
Wind Speed
≤42m/s
Design Standards
JIS 8955:2011 DIN 1055 ASCE_7-05 AS NZS1170
Mounting Place
Flat Ground
Available Panel
With Frame; Frameless
Installation Angle
0°~45°
Layout
Customized
Quality Warranty
10 Years

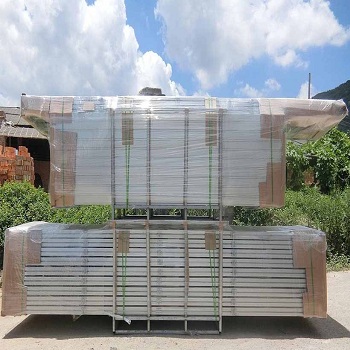

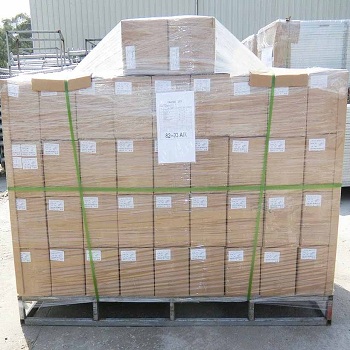

Product Packing :


Solar Mounting Ground Structure
Solar Energy Brackets Aluminium
