PV Module 500W Mono Solar Panels
Solar PV Modules 500 watt solar panel with 96 cells, Monocrystalline solar panel, High Efficiency, Easy installation.
Item NO.:
Mono Solar PanelPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaColor:
Silver/BlackShipping Port:
NingboLead Time：
10 Days-
Certificate
IEC61215/IEC61730/1703/IEC61701/IEC62716 -
Size:
1956*1310 * 40 mm -
Warranty:
10Years -
Power range:
Mono 590-520W
- Product Detail

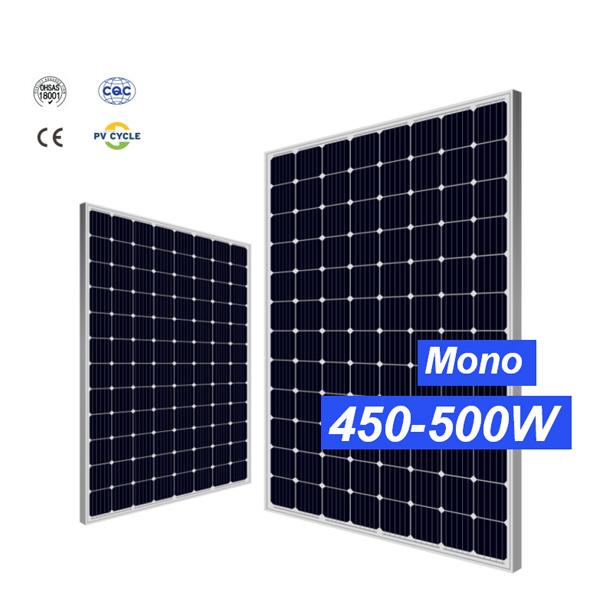

PV Module 500W Mono Solar Panels
PV Solar Panel Mono 490w 500w 510w 520w Solar Panel For Home Power Solar System
Solar Panel : All certifications we can procide
Product Detail :
|
480W-500W Solar Panel Parameters
|
|||||
|
Module
|
|
EPM480-500W(96)
|
|||
|
Encapsulation
|
|
Glass/EVA/Cell/EVA/Backsheet
|
|||
|
Size and Number of cells
|
|
156mm*156mm 96/8*12 pcs
|
|||
|
Maximum Power Pmax
|
W |
490
|
500
|
510
|
520
|
|
Maximum Power Voltage(Vmp)
|
V |
48.5
|
48.7
|
49.3
|
49.5
|
|
Maximum Power Current(Imp)
|
A |
10.1
|
10.27 |
10.34
|
10.51
|
|
Open Circuit Voltage(Voc)
|
V |
58.2
|
58.44
|
59.16 |
59.40
|
|
Short Circuit Current(Isc)
|
A |
10.61
|
10.78
|
10.86
|
11.03
|
|
Cell Efficiency
|
% |
20.64
|
21.12
|
22.27
|
22.71
|
|
Module Efficiency
|
% |
19.32
|
19.71
|
20.10
|
20.5
|
|
Tolerance
|
|
0+3%
|
|||
|
Max System Open Circuit Voltage
|
|
1500V
|
|||
|
Max Series Fuse Rating
|
|
15A
|
|||
|
Junction Box(protection degree)
|
|
≥IP67
|
|||
|
Dimension
|
|
1956*1310*40mm
|
|||
|
Weight
|
|
27.5kg
|
|||
|
Operate Temperture Scope
|
|
-40/+85°C
|
|||
|
Relative Humidity
|
|
0~100%
|
|||
|
Frame Thinkness
|
|
40/45/50mm
|
|||
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|||||

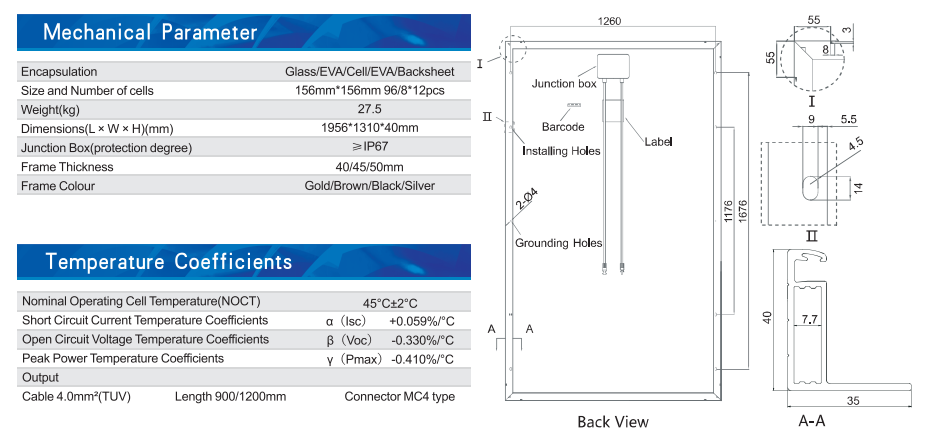

Product Dimensions :
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life

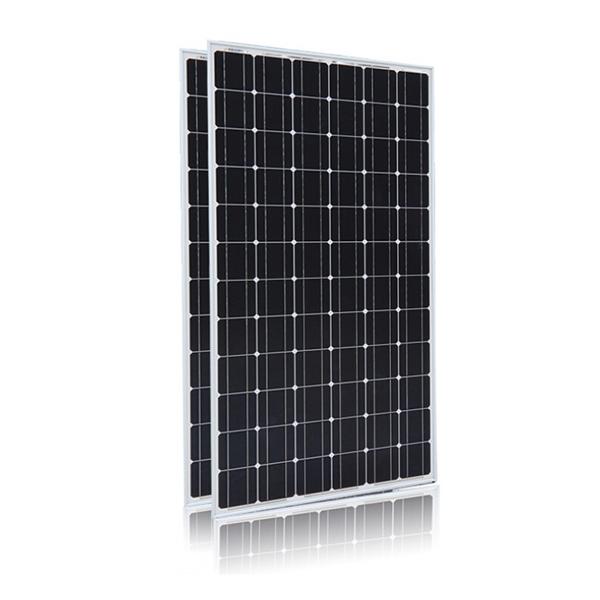

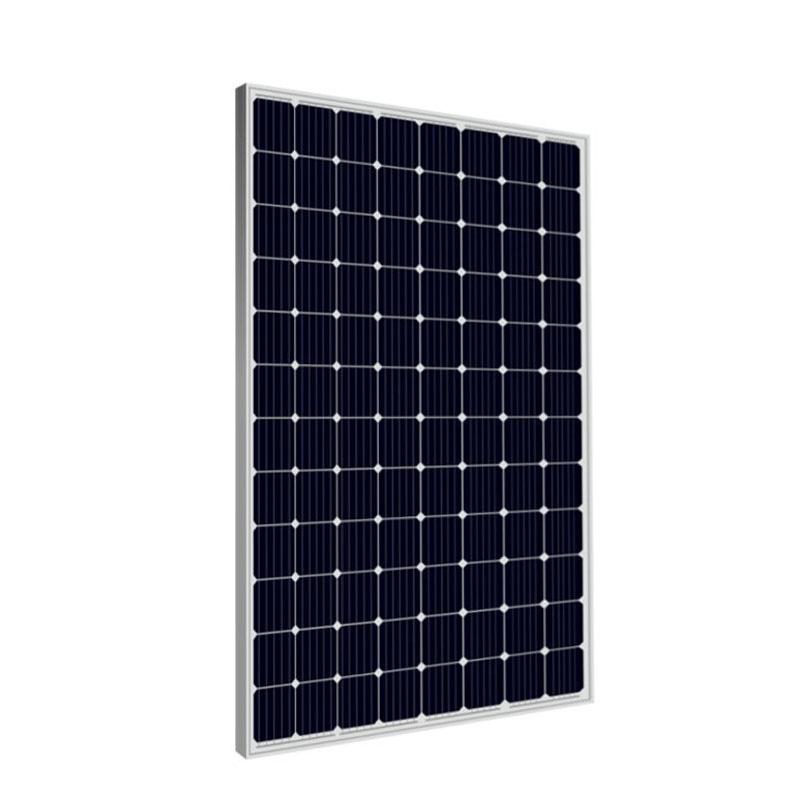

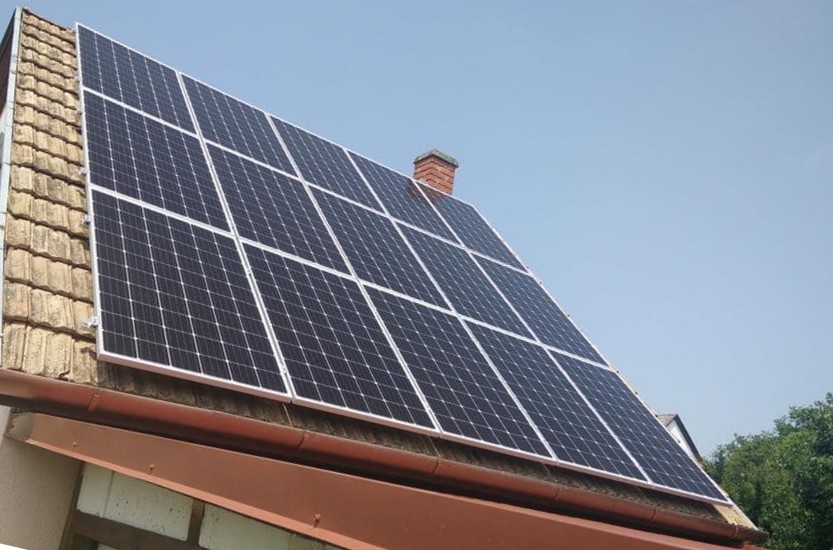

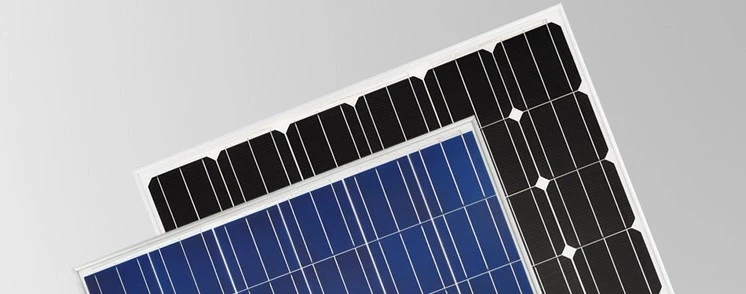

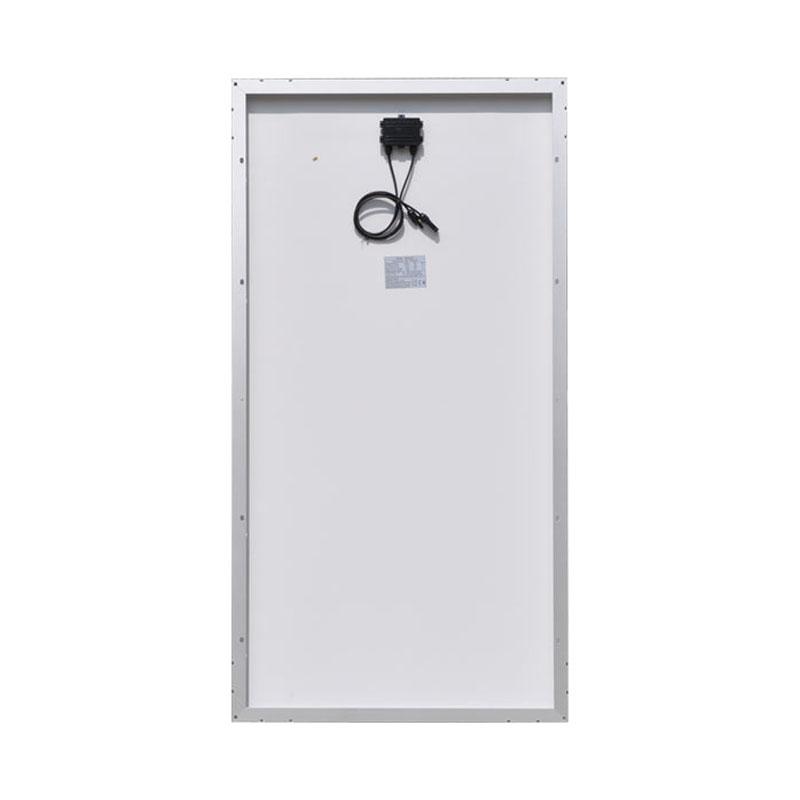

Product Display :
