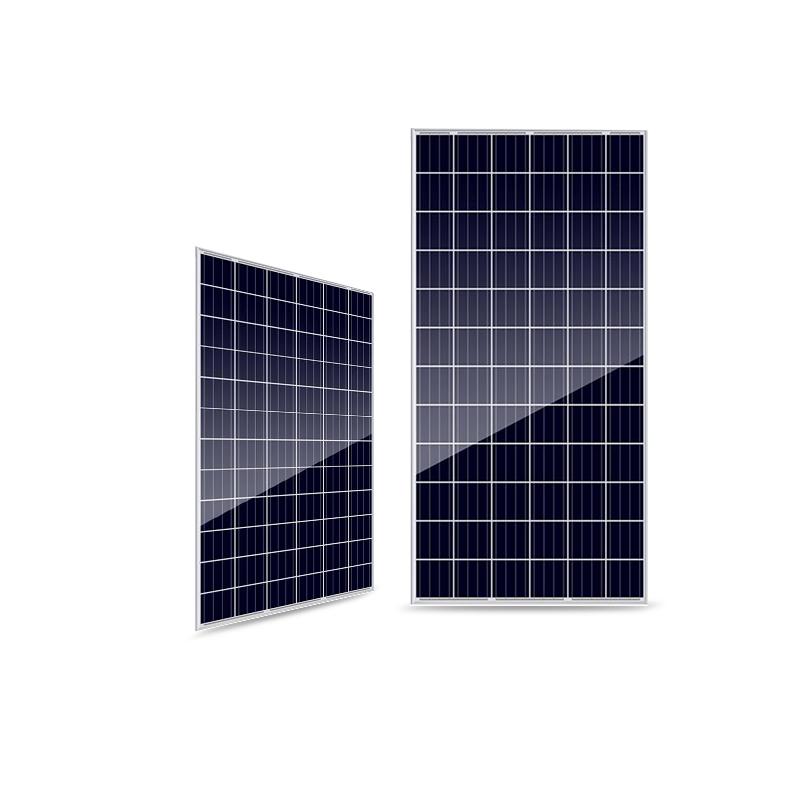

Solar Panel Poly PV Moudle Home Use
solar energy system application high efficient PLOY solar panel 310watt 320watt 330watt 340watt 350watt with 72cells, size 1956*992*40mm
Item NO.:
Poly Panel 350WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
15 Days-
Certificate
CE, IEC61215,IEC61730-1/2 -
Size:
1956*992*40mm -
Warranty:
10years -
Power range:
PLOY 310-350W
- Product Detail

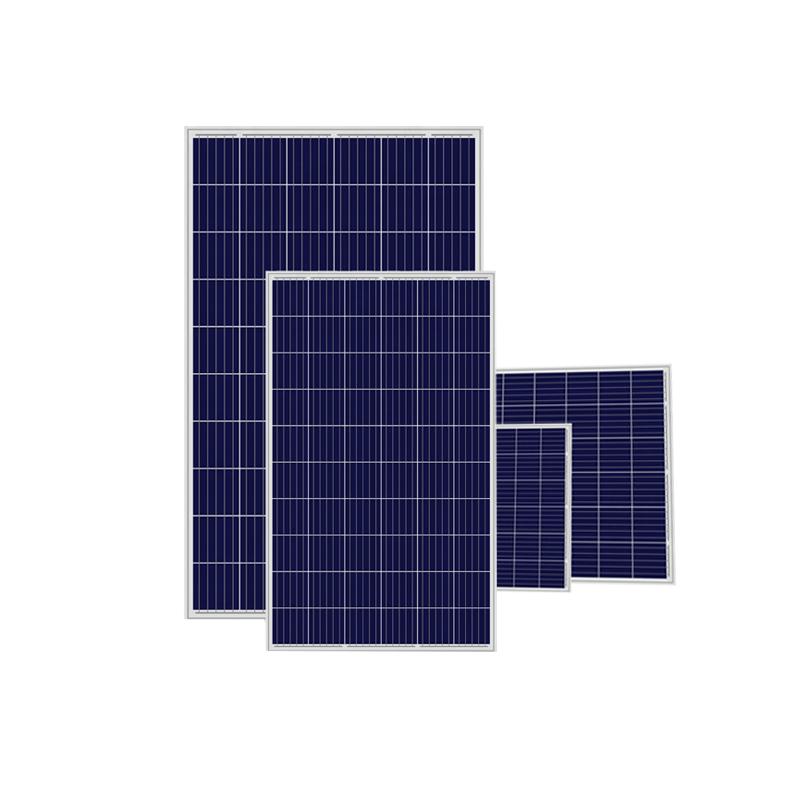

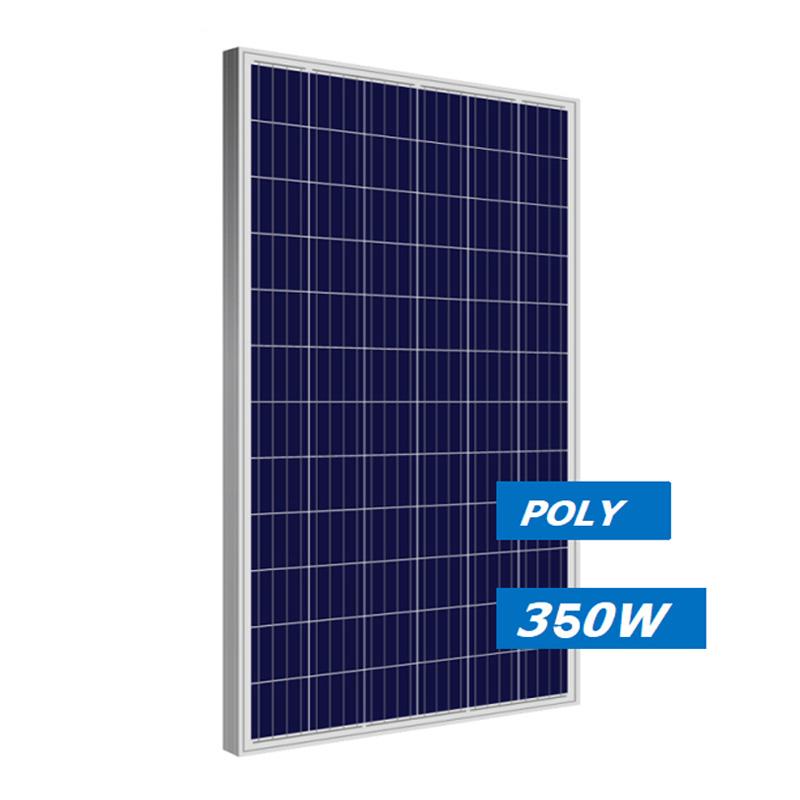

Solar Panel Poly PV Moudle Home Use
Solar Poly 310w 320w 330w 340W 350 watt 360 watt Portable Solar Panel PV Moudle Home

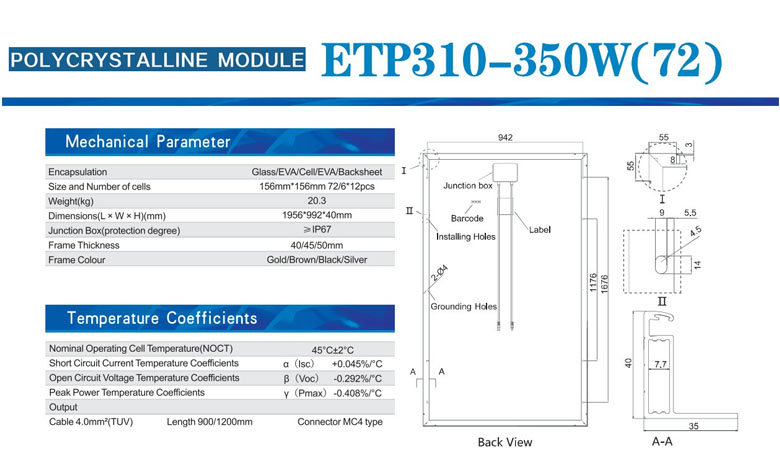

Product Specifications :
|
Module
|
ETP310-350W(72)
|
||||||
|
Encapsulation
|
Glass/EVA/Cell/EVA/Backsheet
|
||||||
|
Size and Number of cells
|
156mm*156mm 72/6*12 pcs
|
||||||
|
Maximum Power Pmax
|
W
|
310
|
320
|
325
|
330
|
340
|
350
|
|
Maximum Power Voltage(Vmp)
|
V
|
37
|
37.5
|
37.9
|
38.2
|
38.5
|
38.9
|
|
Maximum Power Current(Imp)
|
A
|
8.38
|
8.53
|
8.58
|
8.64
|
8.83
|
9
|
|
Open Circuit Voltage(Voc)
|
V
|
44.4
|
45
|
45.48
|
45.84
|
46.2
|
46.68
|
|
Short Circuit Current(Isc)
|
A
|
8.8
|
8.96
|
9
|
9.07
|
9.27
|
9.45
|
|
Cell Efficiency
|
%
|
18.1
|
18.72
|
19.2
|
19.9
|
20.8
|
21.6
|
|
Module Efficiency
|
%
|
15.98
|
16.49
|
16.75
|
17.01
|
17.52
|
18.04
|
|
Tolerance
|
0+3%
|
||||||
|
Max System Open Circuit Voltage
|
1500V
|
||||||
|
Max Series Fuse Rating
|
15A
|
||||||
|
Junction Box(protection degree)
|
≥IP67
|
||||||
|
Dimension
|
1956*992*40mm
|
||||||
|
Weight
|
20.3kg
|
||||||
|
Operate Temperture Scope
|
-40/+85°C
|
||||||
|
Relative Humidity
|
0~100%
|
||||||
|
Frame Thinkness
|
40/45/50mm
|
||||||
|
Frame Colour
|
Gold/Brown/Black/Silver
|
||||||
|
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
|||||||

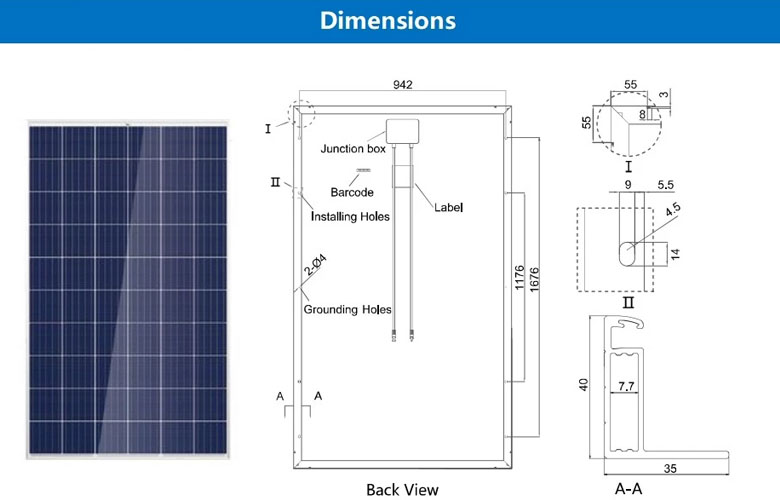

Dimensions :
 |

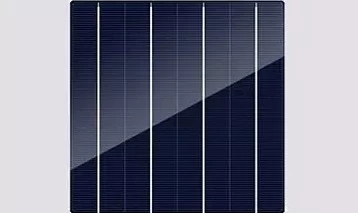

Solar Cell ☆ Anti PID ☆ 19.78% High Efficiency PV Cells ☆ Appearance Consistency ☆ Color sorting ensure consistent appearance on each module |
|
Glass ☆ Anti-reflective glass ☆ Self-cleaning function ☆ Module efficiency is increased by 3% ☆ Service life is as long as 25 years (30 years optional) |
 |
 |

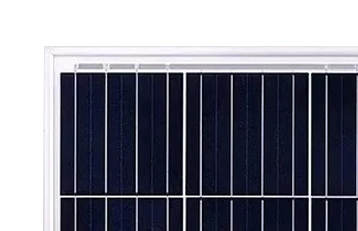

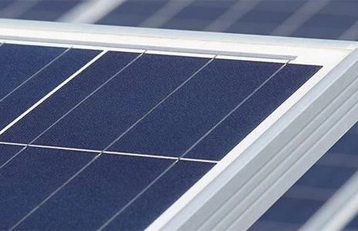

Frame ☆ Stock-size ☆ Silvery and black ☆ thickness 30/35/40/45/50mm ☆ stress test |
|

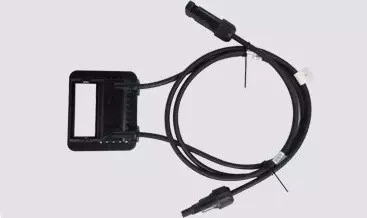

Junction box ☆ Conventional standalone edition and engineering custom edition ☆ Quality diode ensures module running safety ☆ IP67 protection level ☆ Heat dissipation ☆ Long service life |
 |

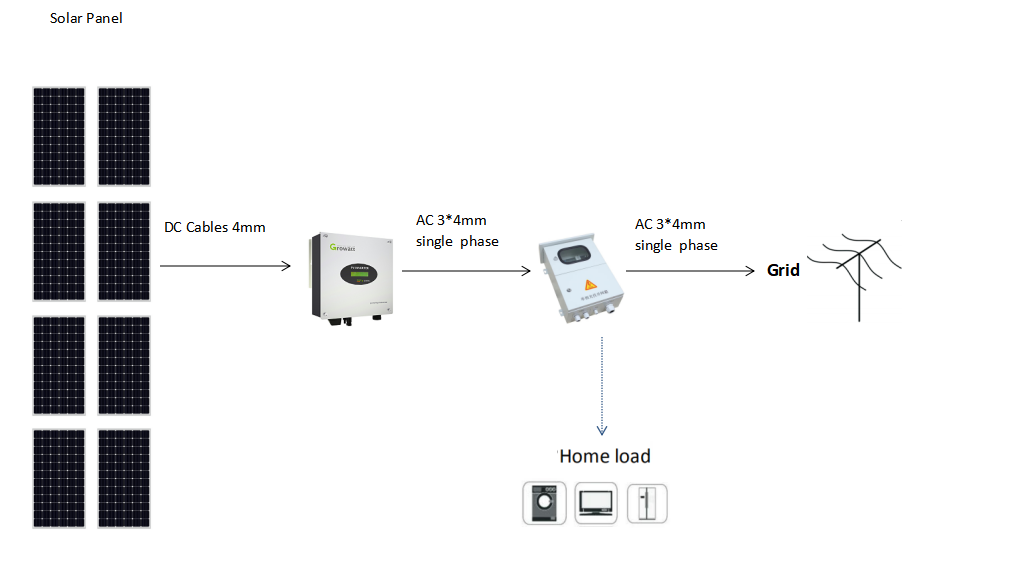

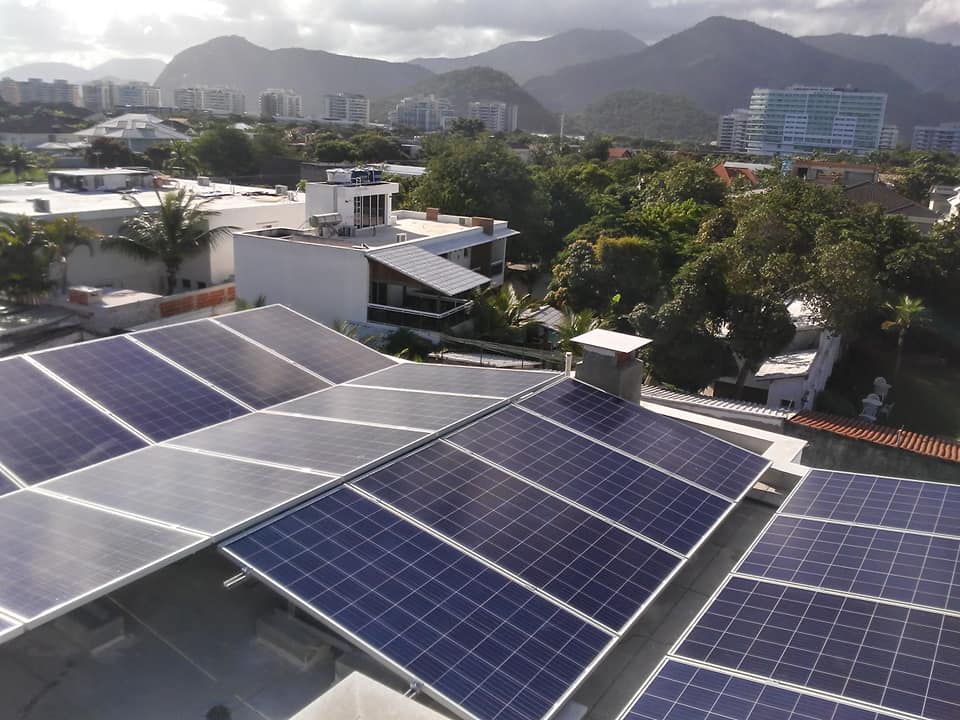

Product Application :
Product Display :
