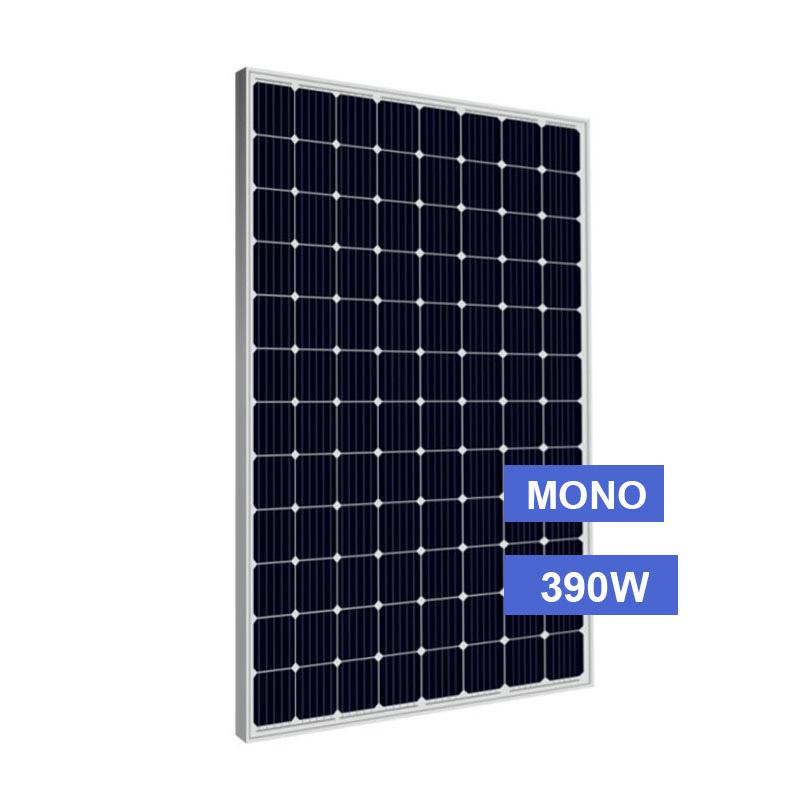

Monocrystalline Solar Module 72cells PV Panels
solar energy system application high efficient MONO solar panel 390watt 400watt with 72cells, size 1980*1002*40mm
Item NO.:
MONO 390WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
10days
- Product Detail
Monocrystalline Solar Module 72cells PV Panels
Specification Display :
| Module | ETM390-400W(72) | ||
| Maximum Power Pmax | W | 390 | 400 |
| Maximum Power Voltage(Vmp) | V | 39.8 | 41.4 |
| Maximum Power Current(Imp) | A | 9.8 | 9.73 |
| Open Circuit Voltage(Voc) | V | 47.76 | 49.32 |
| Short Circuit Current(Isc) | A | 10.29 | 10.22 |
| Cell Efficiency | % | 22.71 | 23.29 |
| Module Efficiency | % | 20.3 | 20.82 |
| Tolerance | 0+3% | ||
| Max System Open Circuit Voltage | 1500V | ||
| Max Series Fuse Rating | 15A | ||
| Operate Temperture Scope | -40/+85°C | ||
| Relative Humidity | 0~100% | ||
| Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%. | |||
| Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2. | |||

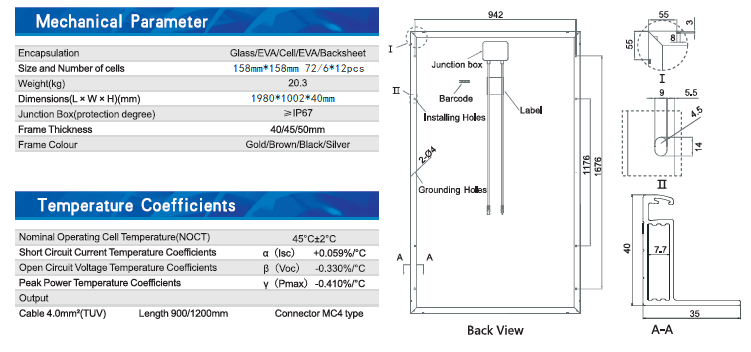

Product Dimensions :
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Packaging & Delivery :
Package 26pcs per pallet, 260pcs per 20ft; 624pcs per 40hq.
Delivery by Road/ Railway/ Sea/ Air.

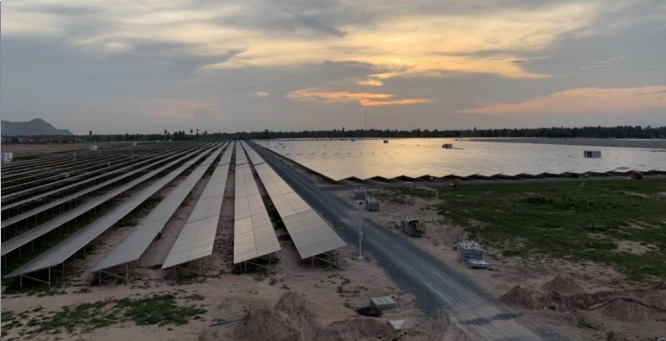

Project :
