Photovoltaic Panels Monocrystalline Solar Panel

72cells Monocrystalline solar panel 350w 360w 370w 380w solar module for pv panel system.


  • Item NO.:

    Mono Panel 400W
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Color:

    Silver/Black
  • Shipping Port:

    Xiamen, Ningbo, Shenzhen, etc.
  • Lead Time:

    15 Days
  • Product Detail

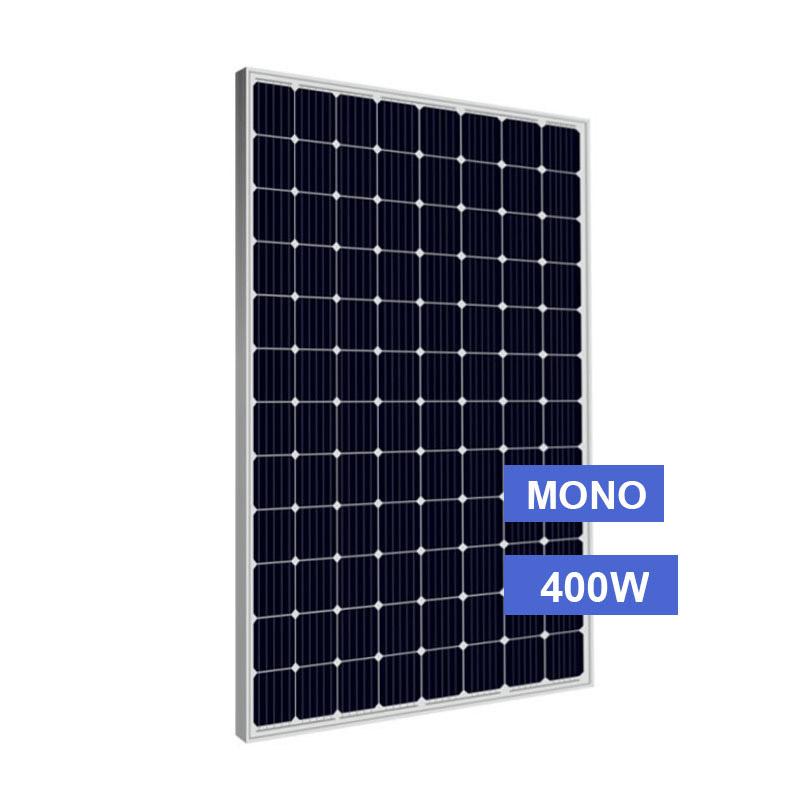

Photovoltaic Panels Monocrystalline Solar Panel

400W MONO Solar Panel 72cells Module 400watt for PV System


Certification :


By CE, TUV, UL, IEC61215, IEC61730, CSA,CEC, JET.


Solar panel certifications



Solar Panel Specification :


Solar moudle 450w 500w


Module ETM350-400W(72)
Maximum Power Pmax W 350 360 370 380 400
Maximum Power Voltage(Vmp) V 38.8

39.1

39.3 39.5 39.9
Maximum Power Current(Imp) A 9.02 9.21 9.41 9.62 10.02
Open Circuit Voltage(Voc) V 46.56 46.92 47.16 47.4 47.84
Short Circuit Current(Isc) A 9.47 9.67 9.89 10.1 10.32
Cell Efficiency % 19.8 20.1 20.48 20.8 21.5
Module Efficiency % 18.22 18.74 19.26 19.78 20.84
Tolerance 0+3%
Max System Open Circuit Voltage 1500V
Max Series Fuse Rating 15A
Operate Temperture Scope -40/+85°C
Relative Humidity 0~100%
Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2.


Product Dimensions :


Solar photovoltaic


Solar Cell

☆ Anti PID

☆ 19.78% High Efficiency PV Cells

☆ Appearance Consistency

☆ Color sorting ensure consistent appearance on each module


Glass

☆ Anti-reflective glass

☆ Self-cleaning function

☆ Module efficiency is increased by 3%

☆ Service life is as long as 25 years (30 years optional)


Frame

☆ Stock-size

☆ Silvery and black

☆ thickness 30/35/40/45/50mm

☆ stress test


Junction box

☆ Conventional standalone edition and

engineering custom edition

☆ Quality diode ensures module running safety

☆ IP67 protection level

☆ Heat dissipation

☆ Long service life



Packaging & Delivery :


Package 26pcs per pallet, 260pcs per 20ft; 624pcs per 40hq.

Delivery by Road/ Railway/ Sea/ Air.




Project :


Solar panels project
