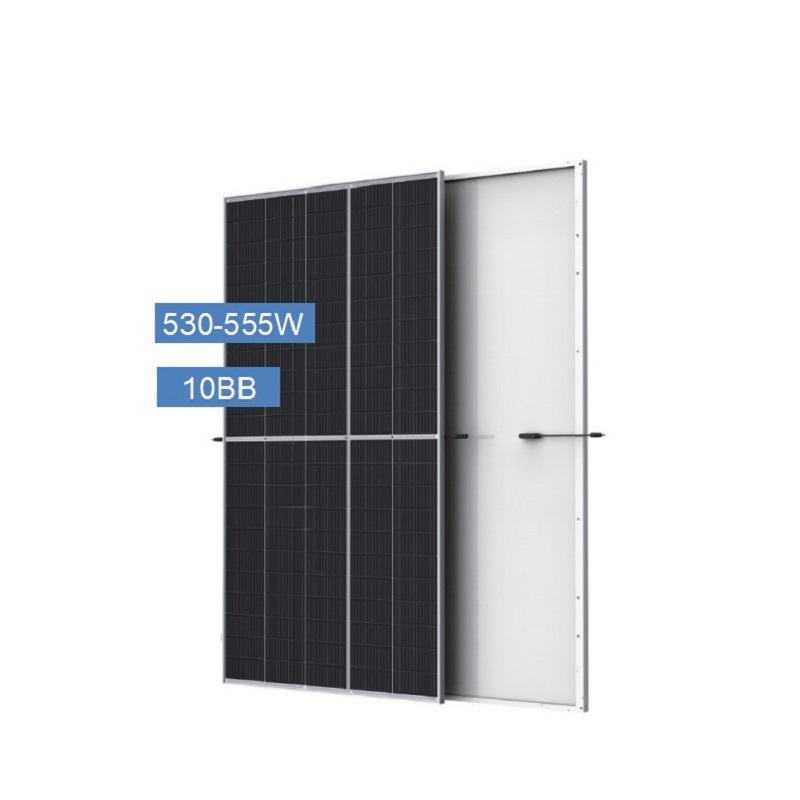

Solar Panel Price 530W Rooftop PV Module

Half Cut Volt 540Wp 545Wp 550Wp Price Solar Panel 48V Module Mono Rooftop Photovoltaic Panel
  • Item NO.:

    ETHM 530-555M
  • Payment:

    TT/LC/Credit Card etc
  • Product Origin:

    China
  • Color:

    Sliver/Black Frame
  • Shipping Port:

    Xiamen/Ningbo/Shanghai Port
  • Lead Time:

    10-15 Working Days
  • Product Detail

Half Cut Volt 540Wp 545Wp 550Wp Price Solar Panel 48V Module Mono Rooftop Photovoltaic Panel

Module Type
530
535
540
545
550
555
Maximum Power- Pmax(W)
530
535
540
545
550
555
Maximum Power Voltage- Vmpp(V)
40.74
40.88
41.01
41.15
41.28
41.41
Maximum Power Current- Impp(A)
13.01
13.09
13.17
13.24
13.32
13.40
Open Circuit Voltage- Voc(V)
49.26
49.40
49.53
49.67
49.80
49.93
Short Circuit Current- Isc(A)
13.69
13.77
13.85
13.93
14.01
14.09
Tolerance- (W)
0- +5
0- +5
0- +5
0- +5
0- +5
0- +5
Module Efficiency- (%)
20.8
21
21.2
21.3
21.5
21.7
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.
Payment

Payment Term


T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,00 USD, we can accept L/C at sight
West Union

Amount lower than 5000USD
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Asurrance,you enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Producing Process
PACKAGE CONFIGURATION
Container
40ft
20ft
Number of Modules per container
620
155
Number of Modules per pallet
31
31
Number of pallets per container
20
5
Packing box dimension(L*W*H) in mm
2295x1075x1270mm
2295x1075x1270mm
Our Project Show
FAQ

Q1: What brand of this panel?

A1: solar panel, we are the manufacture, OEM available, wholesale is welcome.


Q2: What kind of solar cells for this model?
A2: It is mono PERC 166mm 10BB cells.

Q3: What's the efficiency for the solar panel?
A3: From 20.8% to 21.7%, depending on the models.

Q4: What about the warranty period, like how many years?

A4: 12 years workmanship warranty with 30 years linear warranty.
