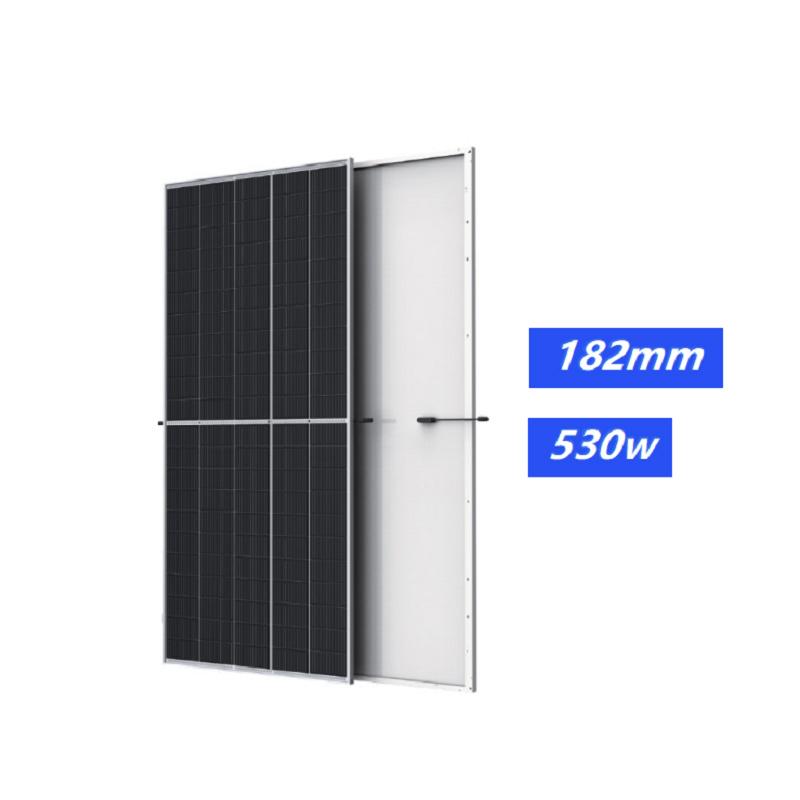

solar panels 550W Monocrystalline 10BB Half Cut For House

Chinese Cheapest Price Solar Panels Price Half Cut 550W Monocrystalline 10BB Solar Panel For House

Item NO.:
ETHM 530-555M
Payment:
TT/LC/Credit Card etc
Product Origin:
China
Color:
Sliver/Black Frame
Shipping Port:
Xiamen/Ningbo/Shanghai Port
Lead Time：
10-15 Working Days

INQUIRE now

Categories

Hot Products

Product Detail

Solar Panel For House

Solar Panel : All certifications we can procide

Product Detail:

Module Type	530	535	540	545	550	555
Maximum Power- Pmax(W)	530	535	540	545	550	555
Maximum Power Voltage- Vmpp(V)	40.74	40.88	41.01	41.15	41.28	41.41
Maximum Power Current- Impp(A)	13.01	13.09	13.17	13.24	13.32	13.40
Open Circuit Voltage- Voc(V)	49.26	49.40	49.53	49.67	49.80	49.93
Short Circuit Current- Isc(A)	13.69	13.77	13.85	13.93	14.01	14.09
Tolerance- (W)	0- +5	0- +5	0- +5	0- +5	0- +5	0- +5
Module Efficiency- (%)	20.8	21	21.2	21.3	21.5	21.7
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.

Product Dimensions:

Solar Cell

☆ High PID resistant

☆ High Efficiency PV Cells

☆ Module efficiency up to 17.2% achieved through advanced cell technology and manufacturing capabilities

☆ Color sorting ensure consistent appearance on each module

Glass

☆ Anti-reflective glass

☆ Self-cleaning function

☆ Module efficiency is increased by 2%

☆ translucency of normal luminance is increased by 2%

Frame

☆ Boost bearing capability and prolong service life

☆ Silvery or black are optional

☆ Serrated-clip design tensile strength

Product Display :
