Half Cell Solar Module POLY Panel
Ploycrystalline Half Cell Technologe Poly Module 285w 290w 295w 300w 305w 120cells Solar Panel
Item NO.:
ETHP285-305WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
10days-
Certificate
CE, ISO, TUV -
Size:
1675*992*35mm -
Warranty:
12years -
Power range:
285w-305w
- Product Detail

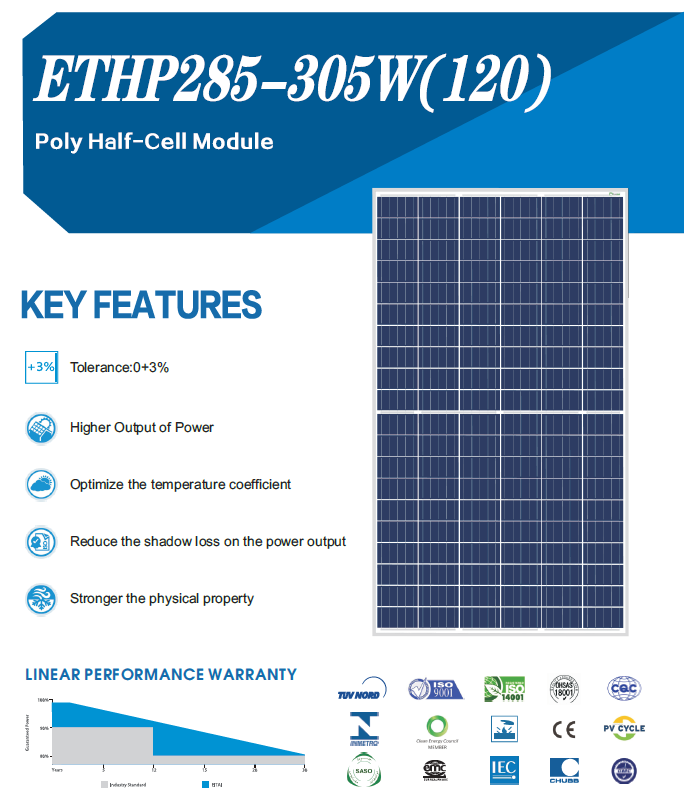

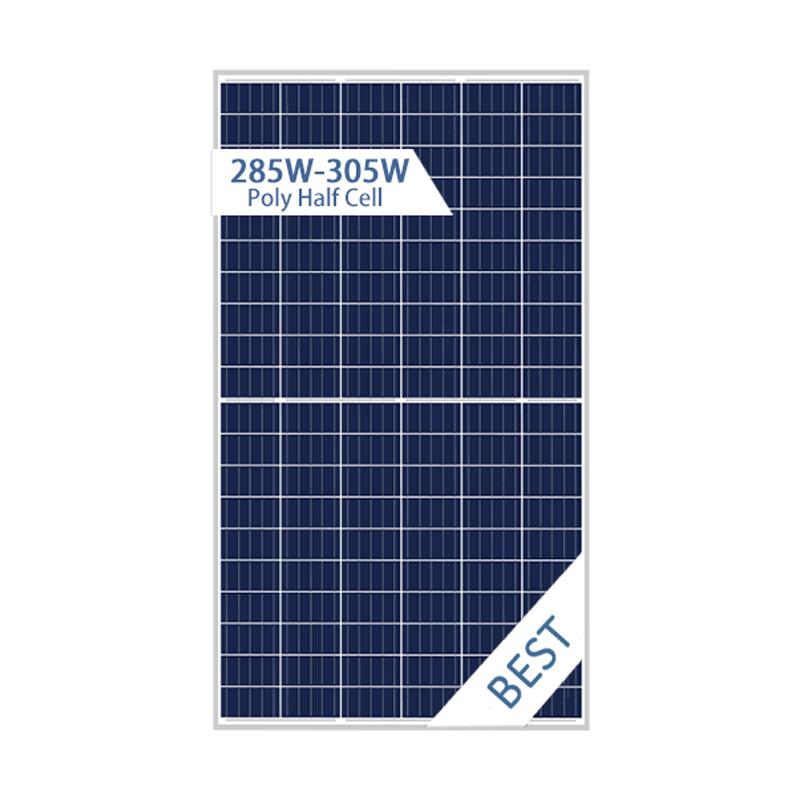

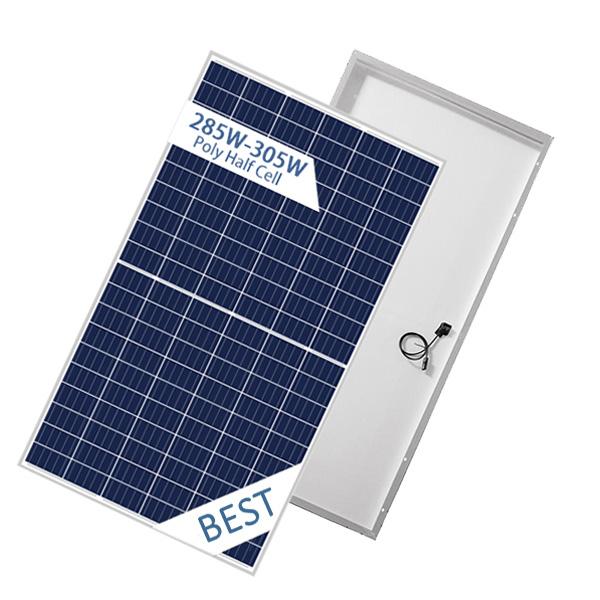

Half Cell Solar Module POLY Panel
Ploycrystalline Half Cell Technologe Poly Module 300w 305w 120cells Solar Panel
High Efficiency Module with half cell technology
- - 120cells POLY PERC technology
- - Low power loss
- - Better shading tolerance
- - Tolearnce: 0+3%
- - Higher Output of Power
- - Optimize the temperature coefficient
- - Stronger the physical property
*12 years product workmanship warranty
*25 / 30 years linear power output warranty
Product Specifications :
| Module |
ETHP285-305W
|
||||
| Peak Power Watts( Pmax/W) |
285
|
290
|
295
|
300
|
305
|
| Power Output Tolerance( W) |
0~+5
|
||||
| Maximum Power Voltage( Vmp/V) |
32.10
|
32.30
|
32.50
|
32.70
|
32.90
|
| Maximum Power Current (Imp/A) |
8.88
|
8.98
|
9.08
|
9.18
|
9.28
|
| Open Circuit Voltage( Voc/V) |
38.70
|
38.90
|
39.10
|
39.30
|
39.50
|
| Short Circuit Current( Isc/A) |
9.42
|
9.49
|
9.57
|
9.65
|
9.73
|
| Module Efficiency (%) |
17.10
|
17.40
|
17.70
|
18.00
|
18.30
|
| Solar Cells |
Ponocrystalline
|
||||
| Cell Orientation |
120 cells(6*20)
|
||||
| Module Dimensions |
1675*992*35mm
|
||||
| Weight |
18.8kg
|
||||
| Blacksheet |
White
|
||||
| Frame |
Sliver/Black Anodized Aluminium Alloy
|
||||
| Junction Box |
IP68 rated
|
||||
| Cables |
4.0mm2
|
||||
| Connector |
MC4
|
||||
Product Details :
 |
Tempered Glass
* 12% Ultra Clear Tempered Glass. * 30% Lower Reflection * 3.2mm thickness * >91% Higher Transmittance * High mechanical strength |
|
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability |
 |
|
|
Junction box
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level Heat Dissipation Long service life |
|
Mono Half Cells
* PERC Half Cells * Higher Power Output * Less Shading Effect * Appearance Consistency |
 |
 |
Frame
* Aluminum Alloy Frame * 120N Tensile Strength Frame * 110% Seal-lip Design Glue Injection * Black/Silver Optional |

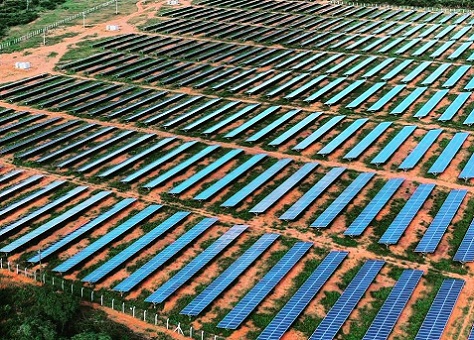

Project :
Product Packing :
|
|
|
- 30pcs per pallet
- 845pcs per 40'HQ
