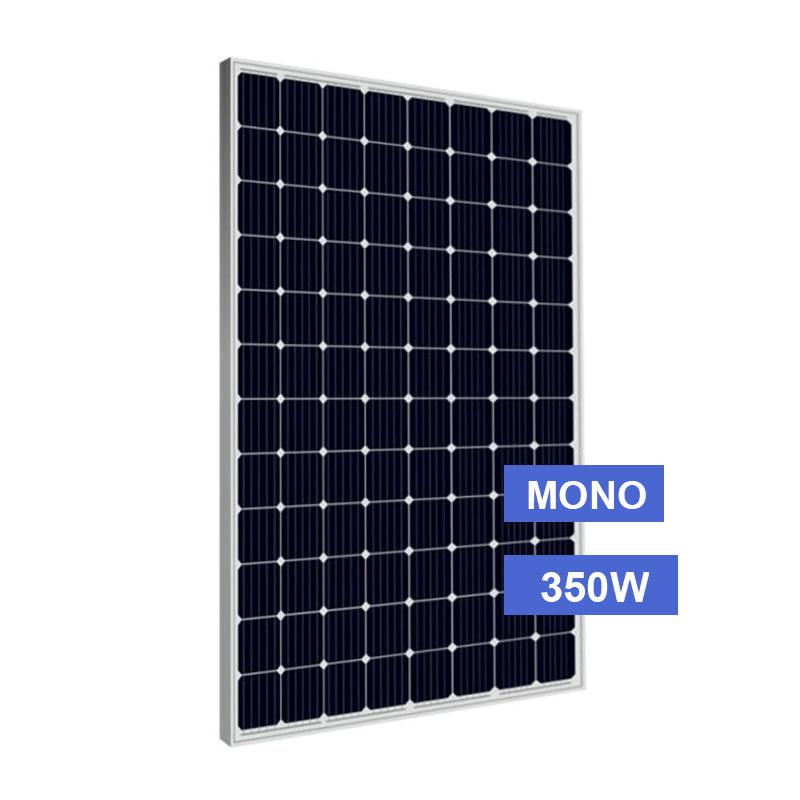

350 Watt Solar Panel Mono PV Module
72cells Monocrystalline solar panel 340w 350w 360w 370w 380w solar module for pv panel system.
Item NO.:
MONO 350WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaColor:
Silver/BlackShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
15 Days-
Certificate
CE/TUV,/IS/ INMETRO -
Size:
1956*992*40mm -
Warranty:
10 years -
Power range:
MONO 340-380W
- Product Detail
Solar Panel Module 350watt MONO PV System
series modules consist of MONO/ Poly-crystalline high efficient silicon cells, which are individually characterized and electronially matched before interconnection and laminated withtoughened glass, EVA&Back sheet of high quality. After assembled with anodized aluminum alloy frame, cable and junction box with MC4 connectors, solar module can be installed easily and work for a long period. At the same time, they can with stand the storm,strong wind and hail impact,etc
Certification :
Specification :
| Module | ETM320-380W(72) | |||||
| Maximum Power Pmax | W | 340 | 350 | 360 | 370 | 380 |
| Maximum Power Voltage(Vmp) | V | 38.6 | 38.8 | 39.1 | 39.3 | 39.5 |
| Maximum Power Current(Imp) | A | 8.81 | 9.02 | 9.21 | 9.41 | 9.62 |
| Open Circuit Voltage(Voc) | V | 46.32 | 46.56 | 46.92 | 47.16 | 47.4 |
| Short Circuit Current(Isc) | A | 9.25 | 9.47 | 9.67 | 9.89 | 10.1 |
| Cell Efficiency | % | 19.5 | 19.8 | 20.1 | 20.48 | 20.8 |
| Module Efficiency | % | 17.7 | 18.22 | 18.74 | 19.26 | 19.78 |
| Tolerance | 0+3% | |||||
| Max System Open Circuit Voltage | 1500V | |||||
| Max Series Fuse Rating | 15A | |||||
| Operate Temperture Scope | -40/+85°C | |||||
| Relative Humidity | 0~100% | |||||
| Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%. | ||||||
| Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2. | ||||||
Product Dimensions :
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Packaging & Delivery :
Package 26pcs per pallet, 260pcs per 20ft; 624pcs per 40hq.
Delivery by Road/ Railway/ Sea/ Air.
Project :
Category : Solar Panel
