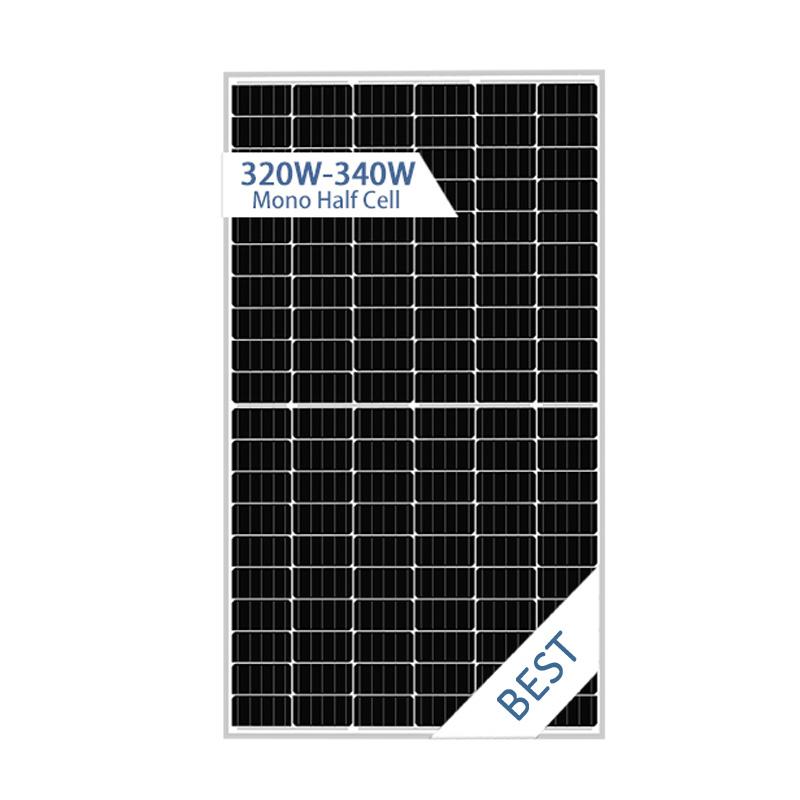

Half Cut Solar Panel PV Module

Half Cut Solar Panel 320w 325w 330w 335w 340w, High Efficiency Module with Half Cell Technology, PV Module 120cells, Realize Better shading tolerance.


  • Item NO.:

    ETHM320-340W
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, Ningbo, Shenzhen, etc.
  • Lead Time:

    10days
  • Certificate

    CE, ISO, TUV
  • Size:

    1675*992*35mm
  • Warranty:

    12years
  • Power range:

    320w-340w
  • Product Detail

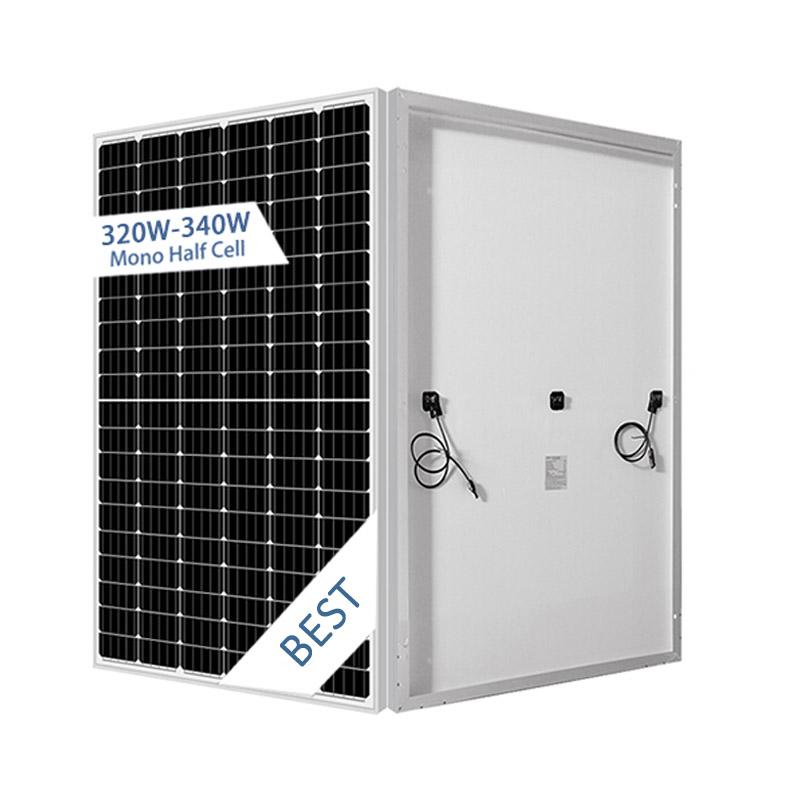

Half Cut Solar Panel PV Module

Half Cut Solar Panel 320w 325w 330w 335w 340w PV Module 120cells

High Efficiency Module with Half Cell Technology, Realize Better shading tolerance.


Mono or poly solar panels


High Efficiency Module with half cell technology


  • - 120cells MONO PERC technology
  • - Low power loss
  • - Better shading tolerance
  • - Tolearnce: 0+3%
  • - Higher Output of Power
  • - Optimize the temperature coefficient
  • - Stronger the physical property


* 12 years product workmanship warranty
* 25 / 30 years linear power output warranty



Product Specifications


Module
ETHM320-340W
Peak Power Watts( Pmax/W)
320
325
330
325
340
Power Output Tolerance( W)
0~+5
Maximum Power Voltage( Vmp/V)
33.62
33.87
34.13
34.36
34.63
Maximum Power Current (Imp/A)
9.52
9.60
9.67
9.75
9.82
Open Circuit Voltage( Voc/V)
40.27
40.56
40.84
41.12
41.36
Short Circuit Current( Isc/A)
10.16
10.23
10.30
10.38
10.46
Module Efficiency (%)
19.00
19.30
19.60
19.90
20.20
Solar Cells
Monocrystalline
Cell Orientation
120 cells(6*20)
Module Dimensions
1675*992*35mm
Weight
18.8kg
Blacksheet
White
Frame
Sliver/Black Anodized Aluminium Alloy
Junction Box
IP68 rated
Cables
4.0mm2
Connector
MC4



Product Details :


solar panels

Tempered Glass


* 12% Ultra Clear Tempered Glass.

* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance

* High mechanical strength


EVA


* >91% Higher Transmittance EVA,


* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Solar panel material

Benefits of solar panels

Junction box


Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level

Heat Dissipation Long service life


Mono Half Cells


* PERC Half Cells

* Higher Power Output

* Less Shading Effect

* Appearance Consistency


Inverter with solar panel
Solar panel connectors

Frame


* Aluminum Alloy Frame

* 120N Tensile Strength Frame

* 110% Seal-lip Design Glue Injection

* Black/Silver Optional




Solar Panel Project :

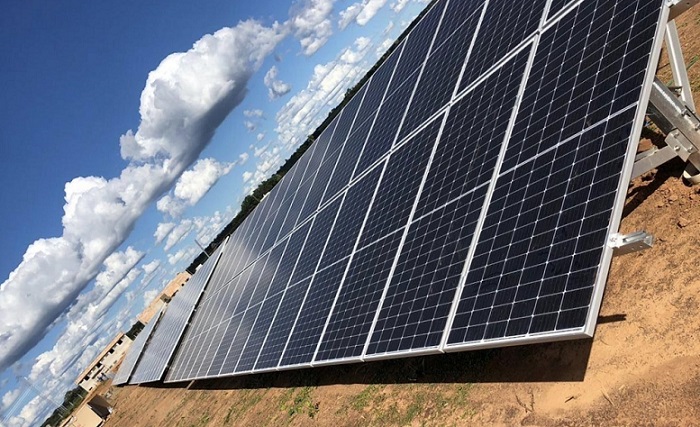

Roof solar panel

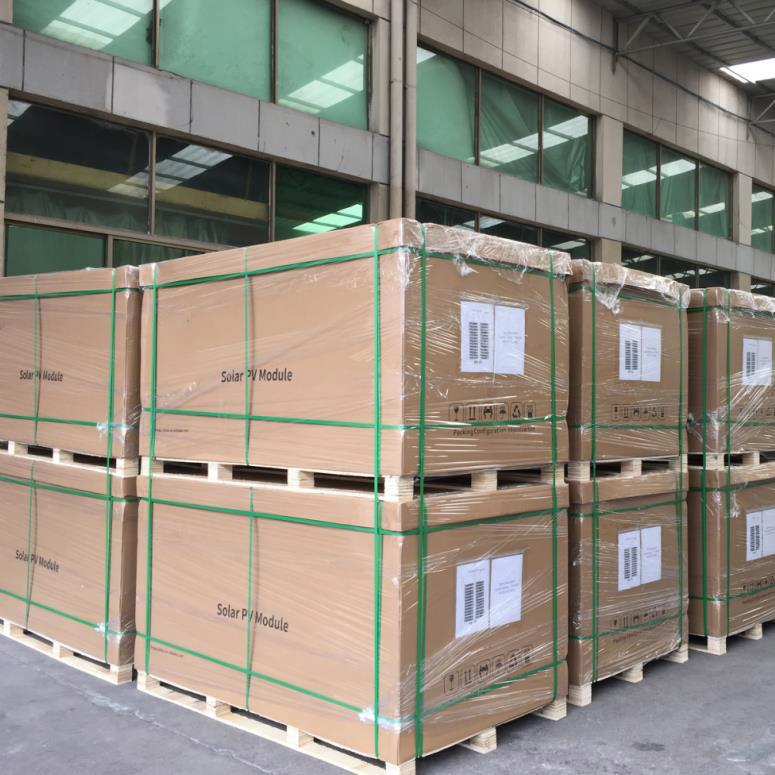

Product Packing :


- 30pcs per pallet

- 845pcs per 40'HQ
