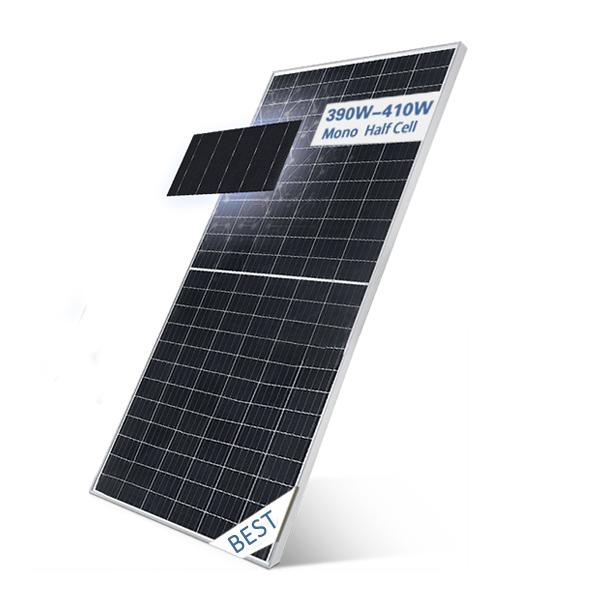

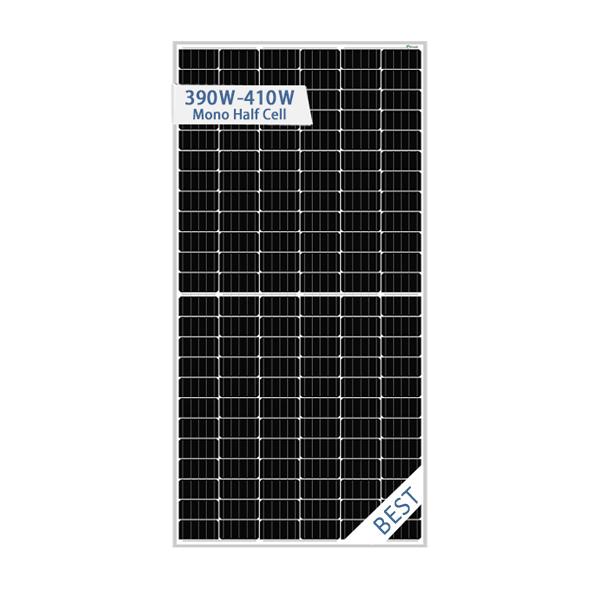

Solar Cell Mono Half Cut Solar Panel

High Efficiency Module with half cell technology 144cells MONO PERC 390watt 395watt 400watt 405watt 410watt, size 2000 * 992 * 40 mm

  • Item NO.:

    ETHM390-410W
  • Order(MOQ):

    100
  • Payment:

    pay
  • Product Origin:

    China
  • Color:

    Silver/Black
  • Shipping Port:

    Xiamen
  • Lead Time:

    25 Days
  • Certificate

    CE
  • Size:

    2000 * 992 * 40 mm
  • Product Detail

Solar Cell Mono Half Cut Solar Panel

Solar Cell Panel Photovoltaic MONO 144series 390w 395w Solar 405w 410watts Half Cut 400watt PV Module


Product Specifications :


Module
ETHM390-410W
Peak Power Watts
390
395
400
405
410
Power Output Tolerance
0~+5
Maximum Power Voltage
40.55
40.85
41.17
41.46
41.76
Maximum Power Current
9.62
9.67
9.72
9.77
9.82
Open Circuit Voltage
48.91
49.21
49.5
49.81
50.12
Short Circuit Current
10.16
10.21
10.26
10.32
10.37
Module Efficiency
19.4
19.7
19.9
20.2
20.4
Solar Cells
Monocrystalline
Cell Orientation
144 cells(6*24)

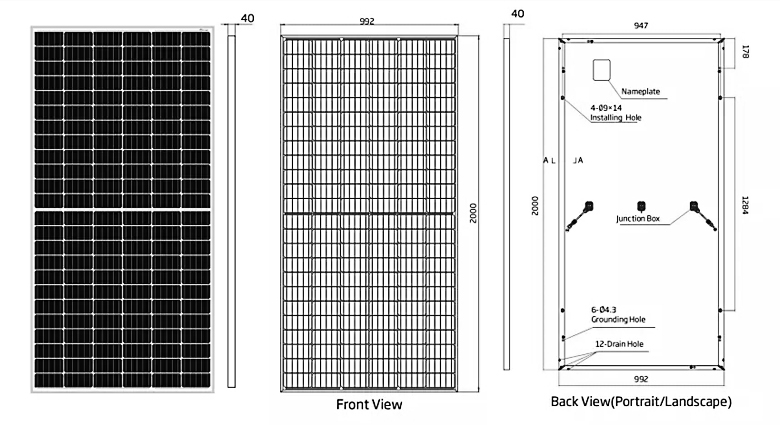

Module Dimensions
2000*992*40mm
Weight
22.5kg
Blacksheet
White
Frame
Sliver/Black Anodized Aluminium Alloy
Junction Box
IP68 rated
Cables
4.0mm2
Connector
MC4



Product Details :


Solar panels

Tempered Glass


* 12% Ultra Clear Tempered Glass.

* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance

* High mechanical strength


EVA


* >91% Higher Transmittance EVA,


* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Solar panel material

Benefits of solar panels

Junction box


Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level

Heat Dissipation Long service life


Mono Half Cells


* PERC Half Cells

* Higher Power Output

* Less Shading Effect

* Appearance Consistency


Inverter with solar panel
Solar panel connectors

Frame


* Aluminum Alloy Frame

* 120N Tensile Strength Frame

* 110% Seal-lip Design Glue Injection

* Black/Silver Optional



Solar panel mono
