Solar panel washing machine
C21-7200 PV module cleaning system shows how to clean solar panels for residential/ commercial cleaning services. Which can increase the efficiency of PV station and save time and cost.
Item NO.:
C21-7200Payment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaShipping Port:
XiamenLead Time：
10 Days-
Certificate
CE -
Size:
5400mm -
Warranty:
6months( extend support)
- Product Detail

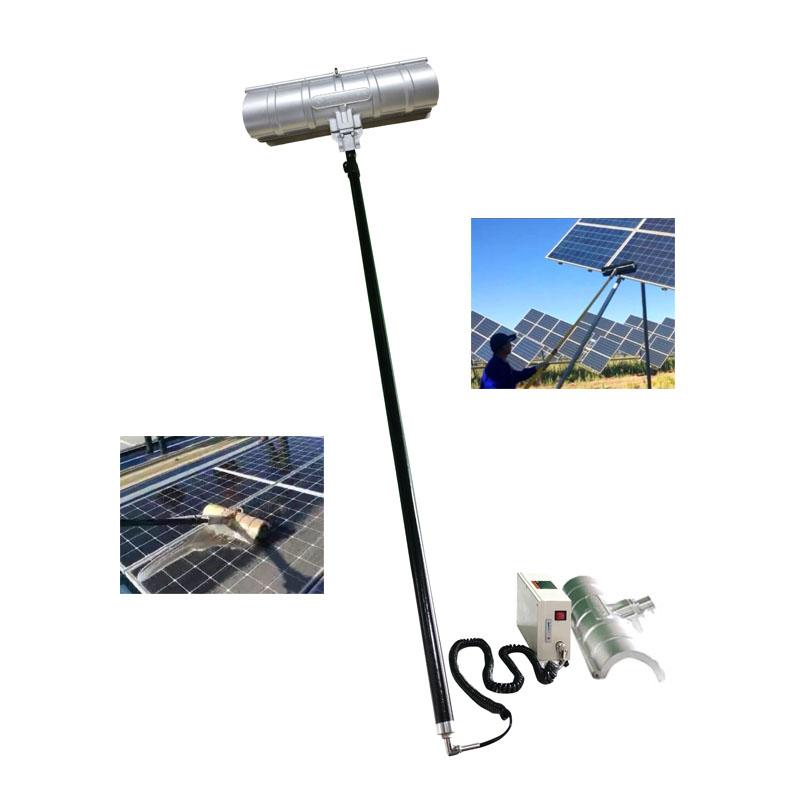

Solar panel washing machine
Solar Power Washing Equipment Photovoltaic System C21-7200 Solar Panel Cleaning Tool
Solar Panel Cleaning System
Cleaning solar panels on roof
Solar Cleaning Machine C21 product is design to the special environment of photovoltaic power station.
Suitable for desert, hills, photovoltaic power station. Components waterless cleaning and water cleaning.
Each person can clean 0.5 to 0.8MW per day.
How often to clean solar panels?
According to measurement, the dirt and dust on the surface of the modules caused an avergage annual reduction in power generation efficiency of 6%. During the period of lack of raining, the power efficiency loss can reach 15% or more due to accumulated dirt in the surface of the modules.
Specification :
Product Description :
| Product Name | C21-7200 | |
| Item | Parameters | Remarks |
| Working Mode |
Motor/ Manual |
|
|
Operating Voltage |
24V |
|
| Charging Voltage | 110V/220V | Customized |
| Motor Power | 220W |
|
| Battery Capacity | 20AH |
|
| Idle electric current | 7.8A |
|
| Idler Revolutions | 500-600RPM |
|
| Battery Life | 3-4H | Affected by work environment |
|
Length of Telescopic Rod |
2-7.2m | 1800mm/Rod |
|
Length of Brush Roll |
570mm |
|
|
Diameter of Brush Roll |
150mm |
|
| Work Efficiency | 0.5-0.8MWP |
|
|
Temperature Range |
-30°--60°C |
|
| Water Pressure | 0.1-0.3Mpa | Running water pressure |
| HS Code | 8424899990 |
|
| Weight | 14KG |
|
Main Features :
1) Brushless motor: low energy consumption, high power, light body, low noise
2) Extension rod: each 1.8 M/can be extended/toughness
3) Back - type lithium battery: portable/large power/long life/super long warranty
4) Drive rod: all aluminum alloy/quality light/extension/unrusted/inner shaft
5) This product has the advantages of light, low cost, high efficiency and wide application scope, so as to provide you with a one-stop solution for photovoltaic power station
Case:
Dry cleaning for dist:
Dry cleaning for snow:
Water cleaning for oil, animal drops:
