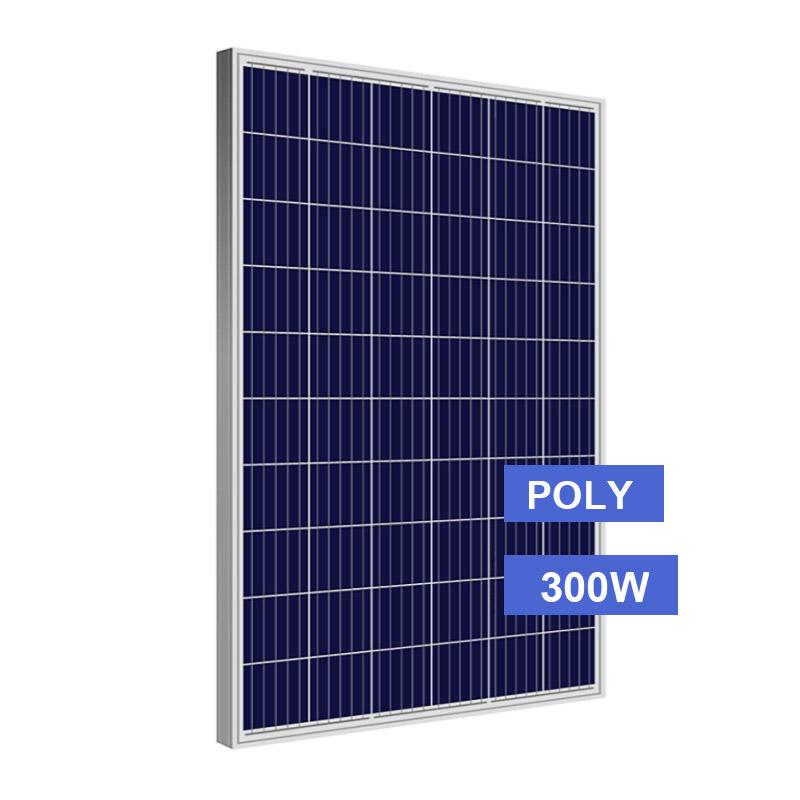

Solar Panels 300w Poly Panel PV Module
solar energy system application high efficient PLOY solar panel 260watt 270watt 280watt 290watt 300watt, PV Module 60cells, size 1940*992*35mm
Item NO.:
Poly Panel 300WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaColor:
Silver/BlueShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
15 Days-
Certificate
CE, IEC61215,IEC61730-1/2 -
Size:
1640*992*35mm -
Warranty:
10Years -
Power range:
Ploy 260-300W
- Product Detail
Solar Panels 300w Poly Panel PV Module
Eitai Hot Sale Europe Warehouse Stock Poly 285w 290W 300W Photovoltaic Pv Solar Panels
Ploy Specifications :
| Module | ETP260-290W(60) | ||||||
| Maximum Power Pmax | W | 260 | 270 | 275 | 280 | 290 | 300 |
| Maximum Power Voltage(Vmp) | V | 31.2 | 31.5 | 31.8 | 32.1 | 32.3 | 32.35 |
| Maximum Power Current(Imp) | A | 8.33 | 8.57 | 8.65 | 8.87 | 8.98 | 9.23 |
| Open Circuit Voltage(Voc) | V | 37.44 | 37.8 | 38.16 | 38.52 | 38.76 | 39 |
| Short Circuit Current(Isc) | A | 8.75 | 9 | 9.08 | 9.16 | 9.43 | 9.69 |
| Cell Efficiency | % | 18.4 | 18.88 | 19.21 | 19.6 | 20.02 | 20.44 |
| Module Efficiency | % | 15.98 | 16.6 | 16.9 | 17.21 | 17.83 | 18.48 |
| Tolerance | 0+3% | ||||||
| Max System Open Circuit Voltage | 1500V | ||||||
| Max Series Fuse Rating | 15A | ||||||
| Operate Temperture Scope | -40/+85°C | ||||||
| Relative Humidity | 0~100% | ||||||
| Standard Test Conditions[STC]:irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%. | |||||||
| Tolerance of Pmpp:0~3%.Certified in accordance with IEC61215,IEC61730-1/2. | |||||||
Show details :
 |
Solar Cell ☆ Anti PID ☆ 19.78% High Efficiency PV Cells ☆ Appearance Consistency ☆ Color sorting ensure consistent appearance on each module |
|
Glass ☆ Anti-reflective glass ☆ Self-cleaning function ☆ Module efficiency is increased by 3% ☆ Service life is as long as 25 years (30 years optional) |
 |
 |
Frame ☆ Stock-size ☆ Silvery and black ☆ thickness 30/35/40/45/50mm ☆ stress test |
|
Junction box ☆ Conventional standalone edition and engineering custom edition ☆ Quality diode ensures module running safety ☆ IP67 protection level ☆ Heat dissipation ☆ Long service life |
 |

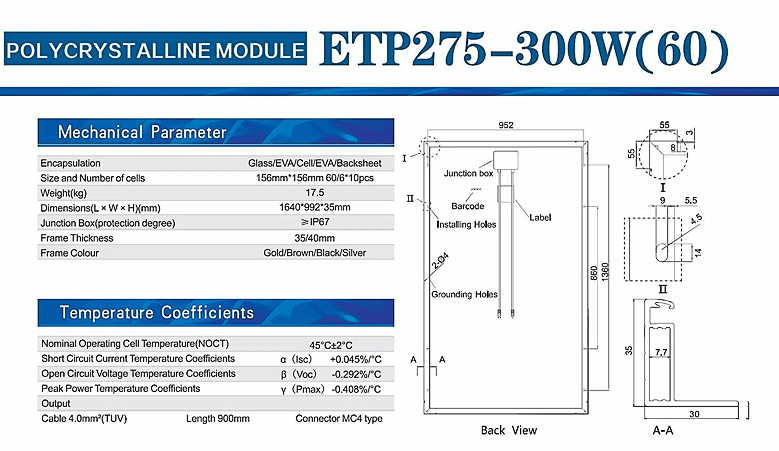

Dimensions

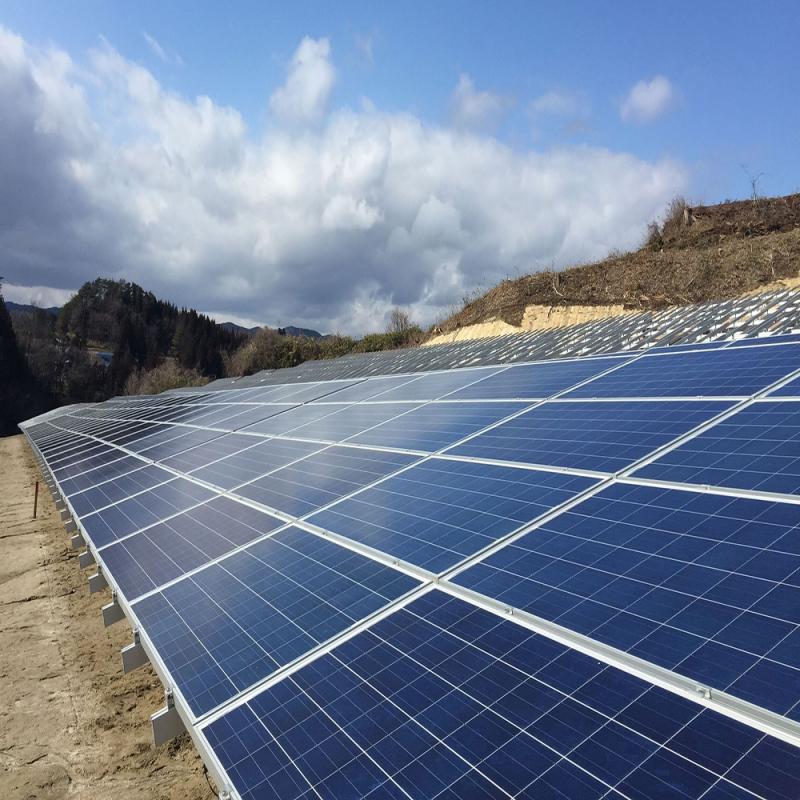

Product Application :
Category : Solar Panel

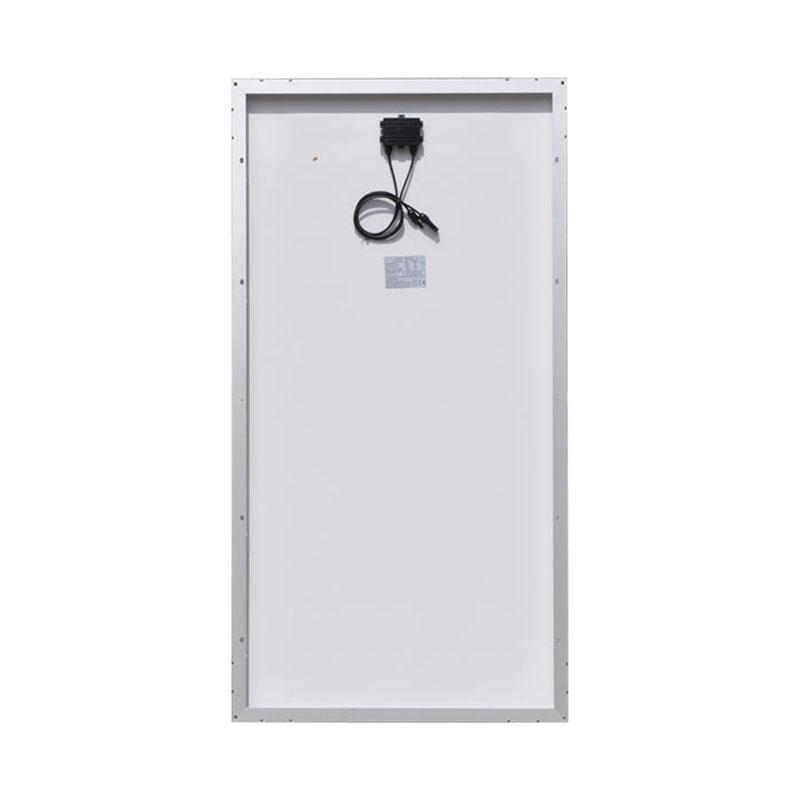

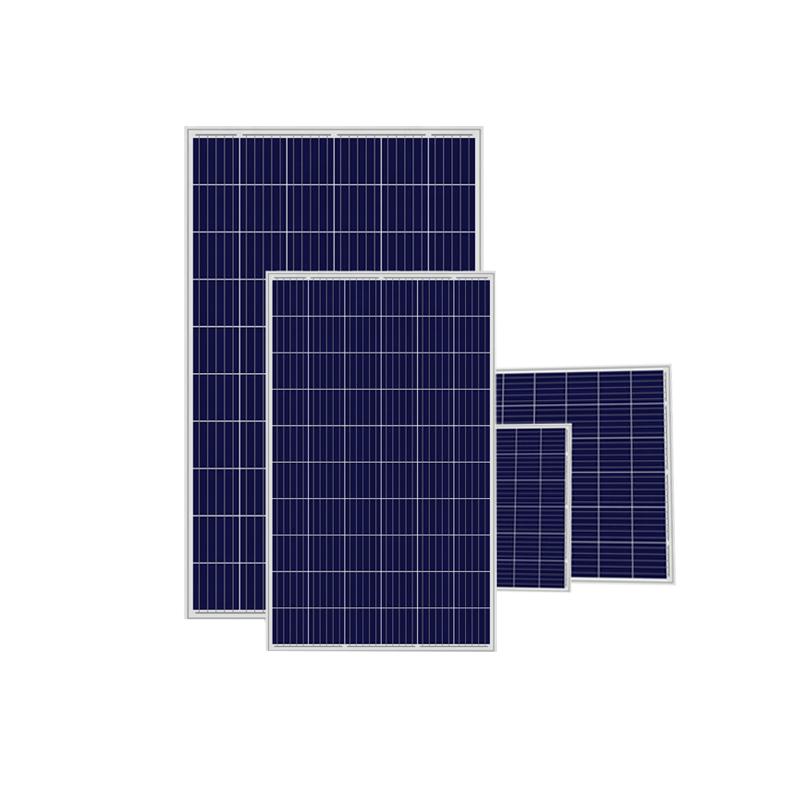

Product Display :
