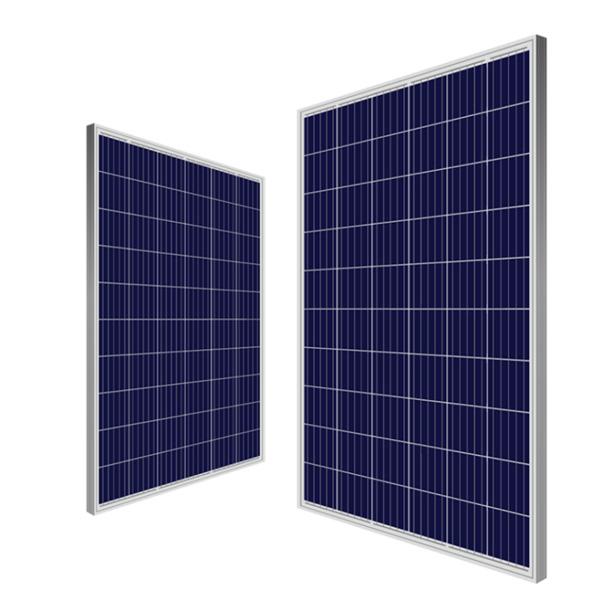

Solar PV Module Poly 350w Solar Panel
Solar PV Module factory covers 90,000 square meters, has more than 500 employees. With an emphasis on management, research and development, continuously manufactures leading-edge products. The modules range from 5W~520W and are approved by CE, TUV, UL, IEC61215, IEC61730, CSA,CEC, JET.
Item NO.:
Poly Solar PanelPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaColor:
Silver/BlueShipping Port:
XiamenLead Time：
25 Days-
Size:
1956 * 992 * 40 mm -
Warranty:
10Years
- Product Detail
Solar PV Module Poly 350w Solar Panel

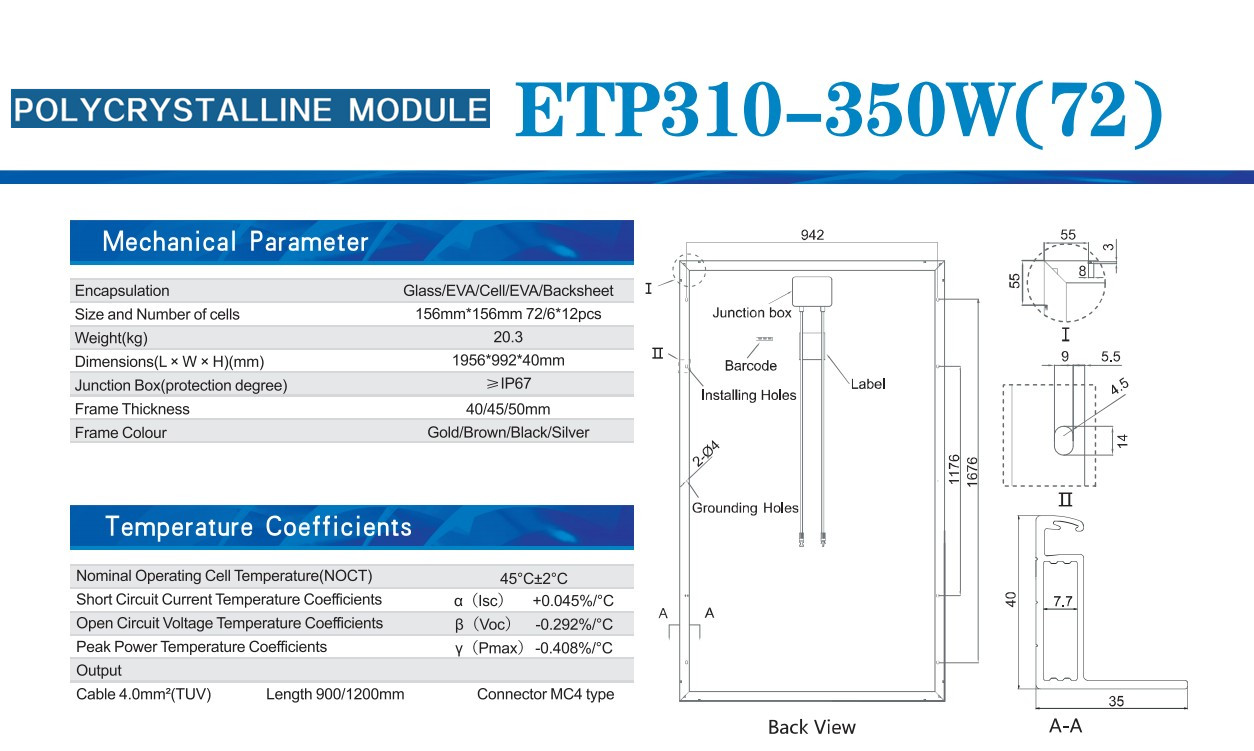

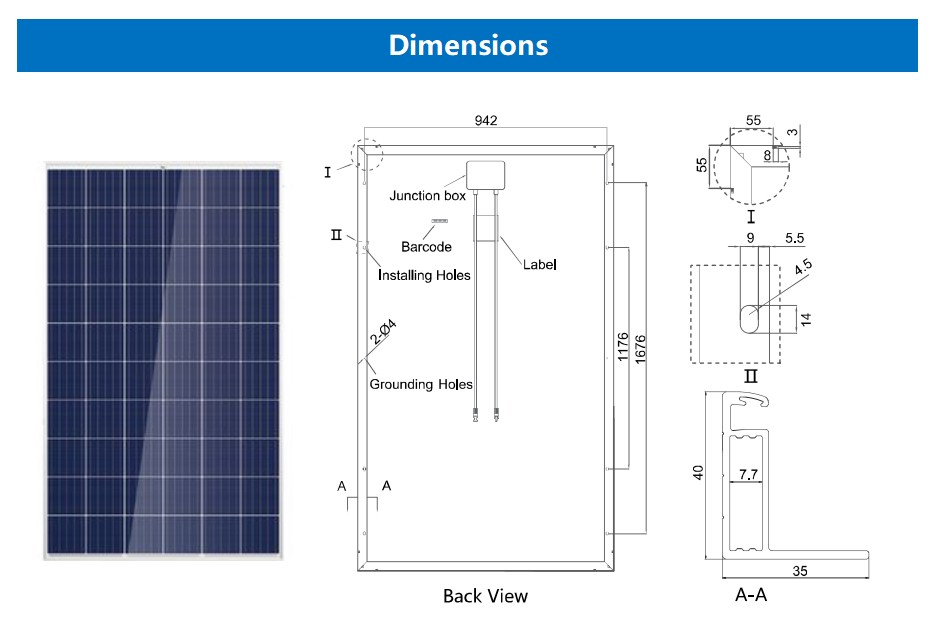

Dimensional
Product Specifications :
|
Module
|
ETP310-350W(72) Poly
|
||||||
|
Maximum Power Pmax
|
W
|
310
|
320
|
325
|
330
|
340
|
350
|
|
Maximum Power Voltage(Vmp)
|
V
|
37
|
37.5
|
37.9
|
38.2
|
38.5
|
38.9
|
|
Maximum Power Current(Imp)
|
A
|
8.38
|
8.53
|
8.58
|
8.64
|
8.83
|
9
|
|
Open Circuit Voltage(Voc)
|
V
|
44.4
|
45
|
45.48
|
45.84
|
46.2
|
46.68
|
|
Short Circuit Current(Isc)
|
A
|
8.8
|
8.96
|
9
|
9.07
|
9.27
|
9.45
|
|
Cell Efficiency
|
%
|
18.1
|
18.72
|
19.2
|
19.9
|
20.8
|
21.6
|
|
Module Efficiency
|
%
|
15.98
|
16.49
|
16.75
|
17.01
|
17.52
|
18.04
|
|
Tolerance
|
0+3%
|
||||||
|
Max System Open Circuit Voltage
|
1500V
|
||||||
|
Max Series Fuse Rating
|
15A
|
||||||
|
Operate Temperture Scope
|
-40/+85°C
|
||||||
|
Relative Humidity
|
0~100%
|
||||||
|
Standard Test Conditions[STC]:
|
irradiance 1000W/m²;AM1.5;module temperature 25°C.Measuring uncertainty of power is within ±3%.
|
||||||
|
Tolerance of Pmpp:
|
0~3%.Certified in accordance with IEC61215,IEC61730-1/2.
|
||||||
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life
Product Display :
